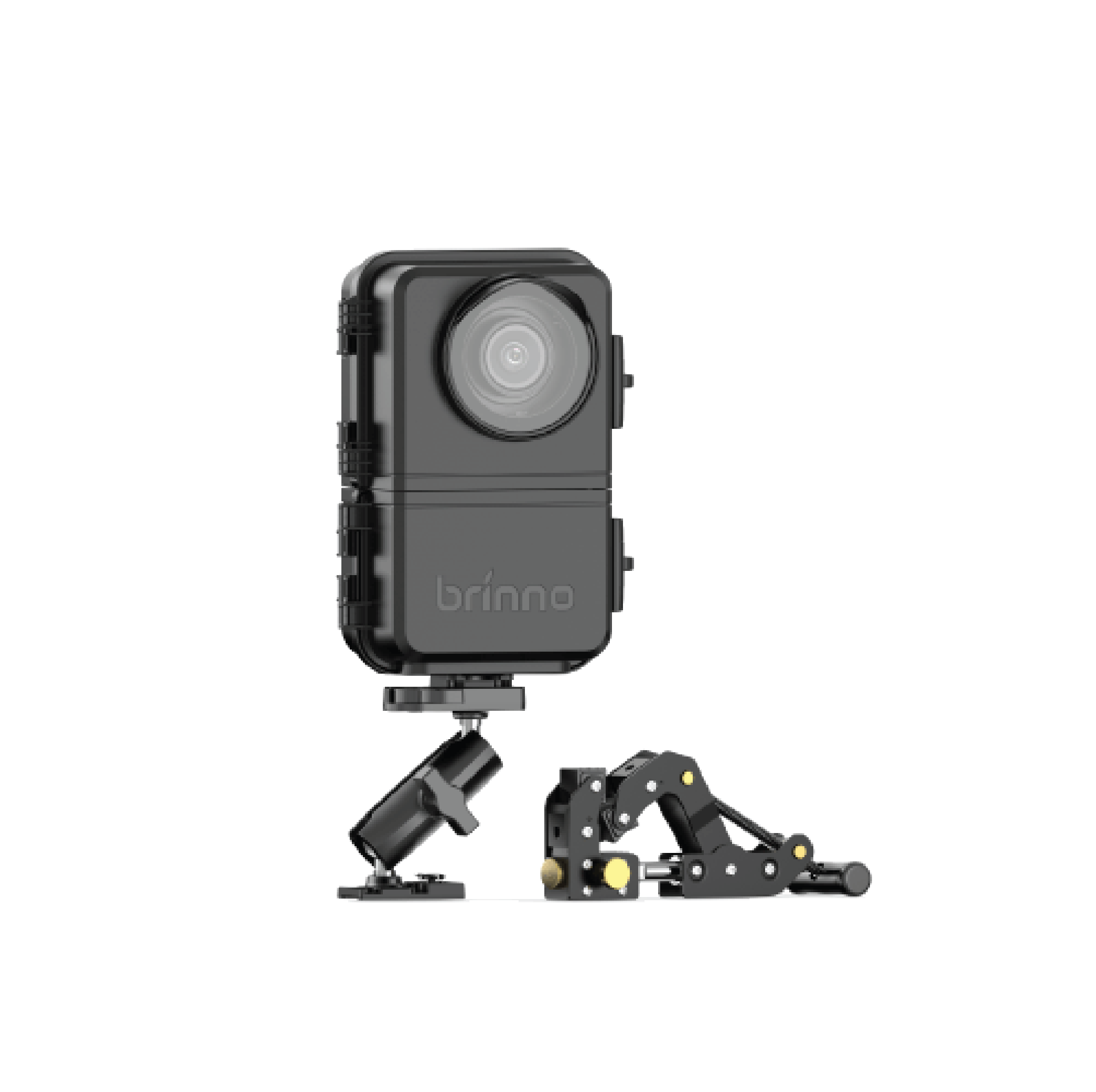

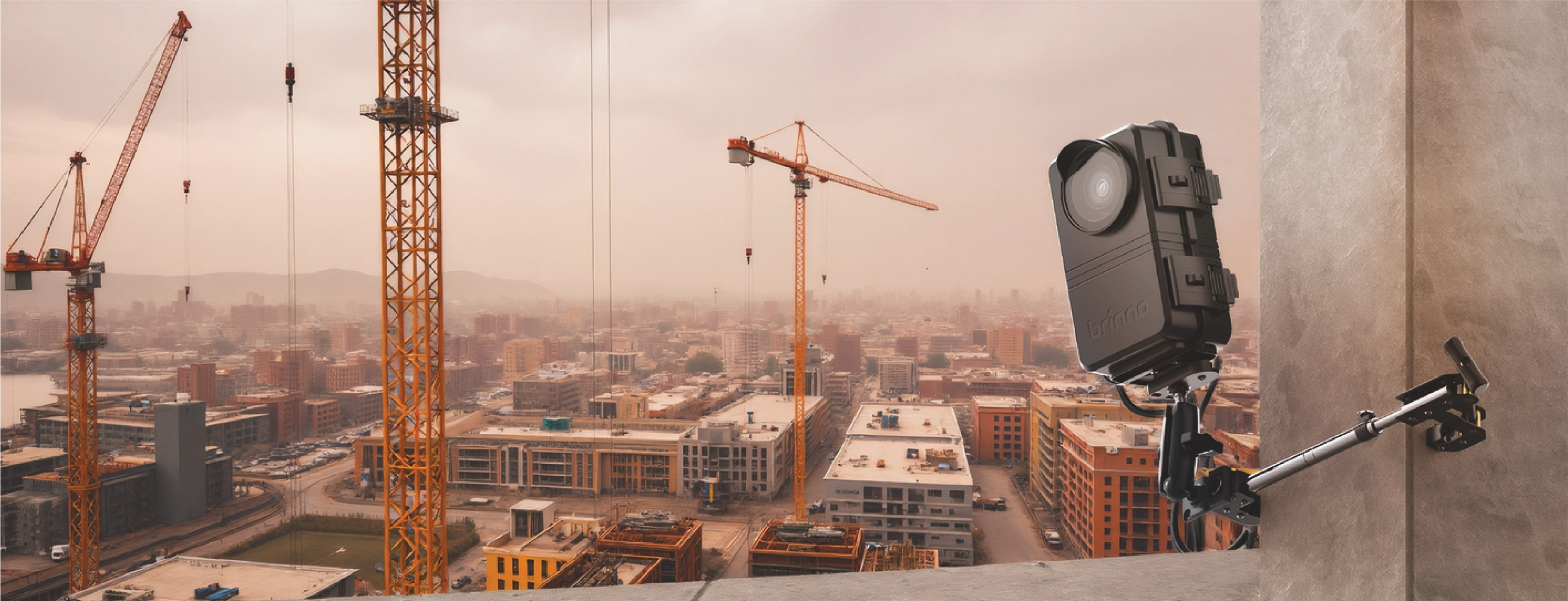

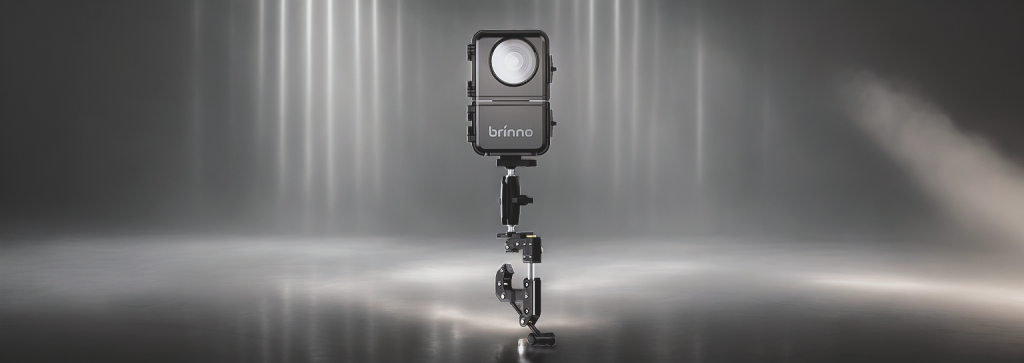

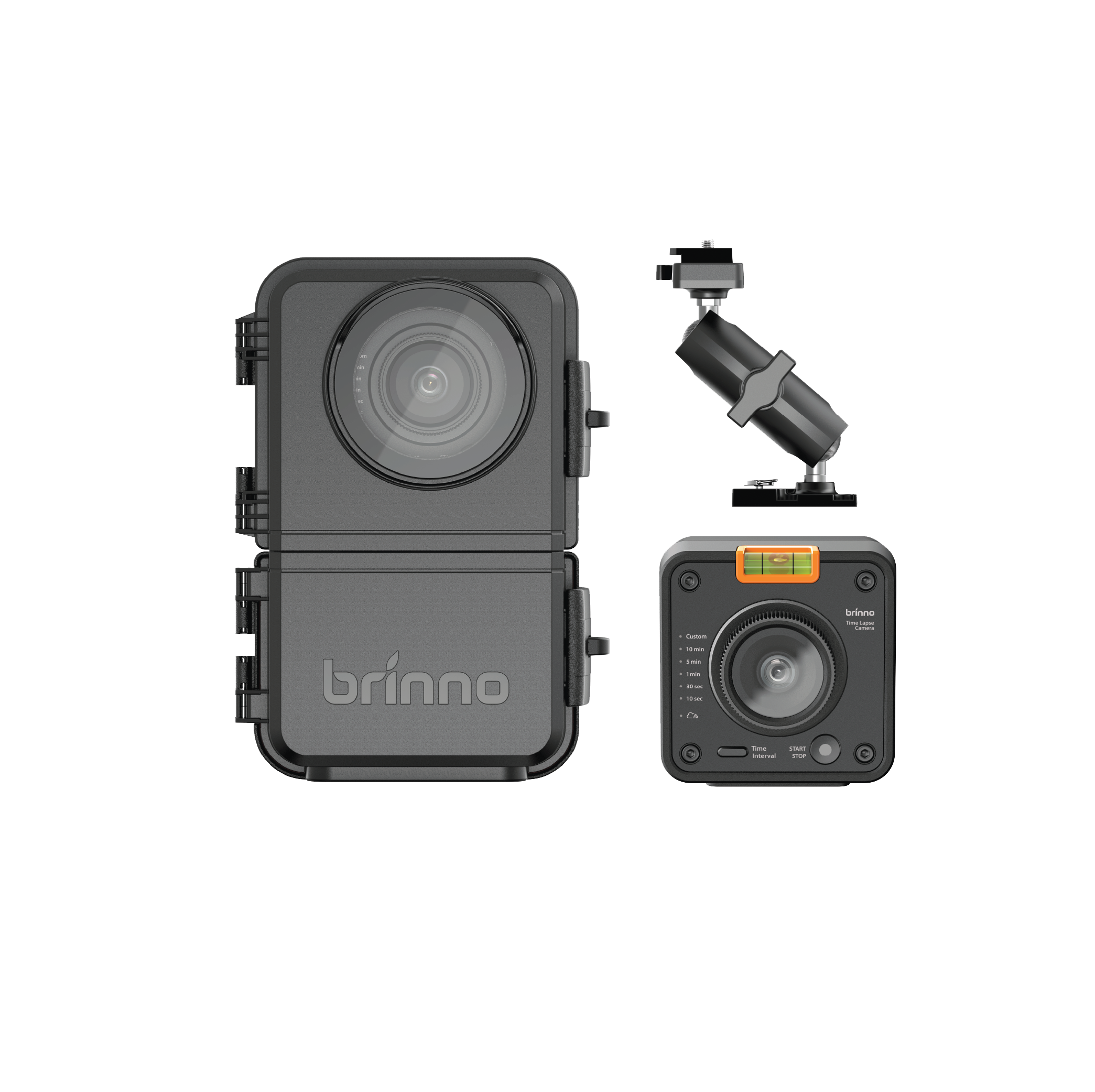

BCC5000 – True 4K Cloud Construction Time Lapse Camera
The BCC5000 is a powerful bundle that combines the 4K TLC5000 time lapse camera with rugged accessories, purpose-built for professional construction and industrial projects. Engineered to withstand harsh outdoor conditions, this smart and commercial-grade solution meets the demands of professional photography. Featuring a weather-resistant housing and a heavy-duty camera clamp, the BCC5000 delivers exceptional image stability making it the ultimate time lapse camera for construction time lapse and long-term outdoor documentation.
Capture Every Detail, Anywhere Remotely and Reliably in True 4K
BCC5000 – True 4K Time Lapse Camera for Demanding Construction Projects

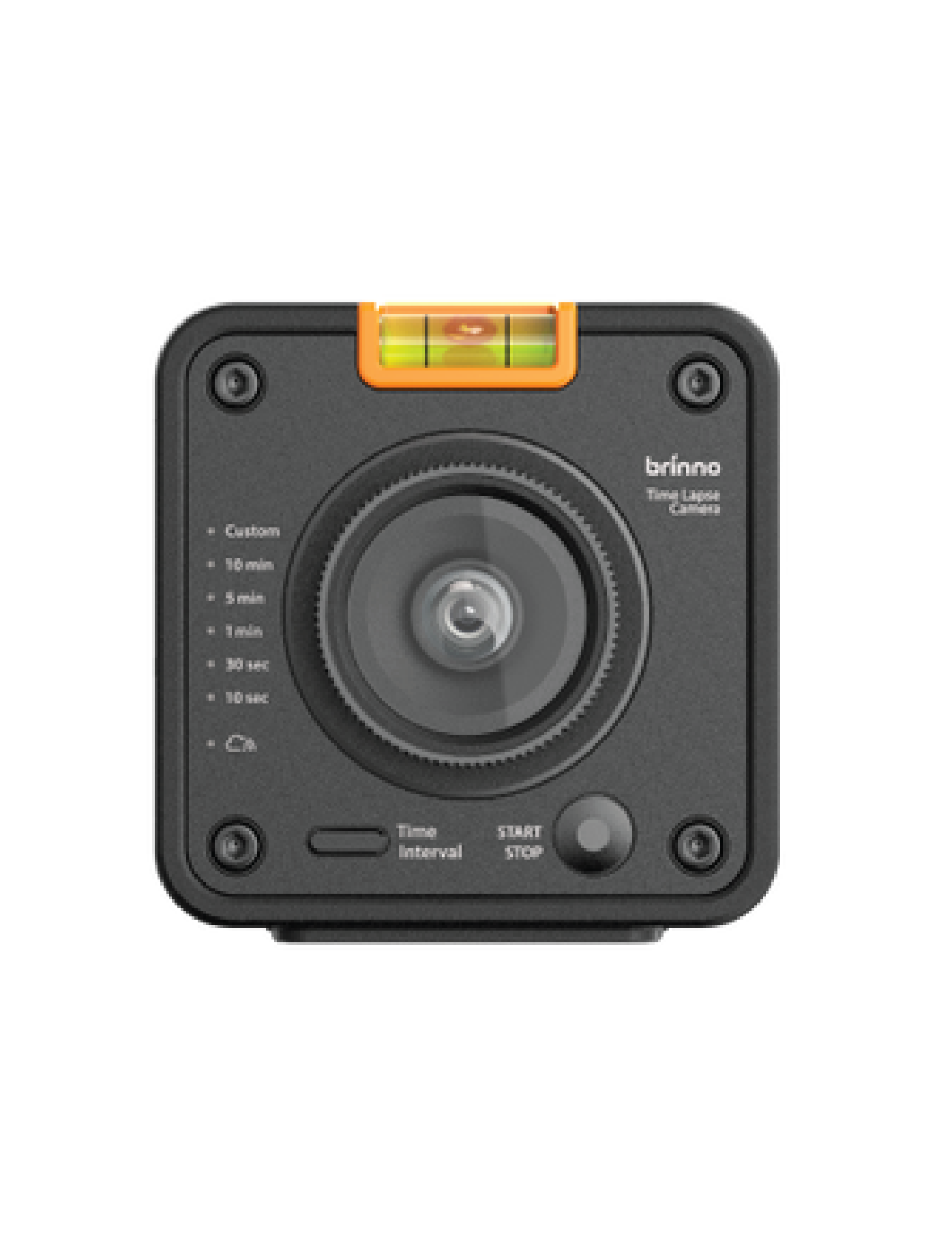

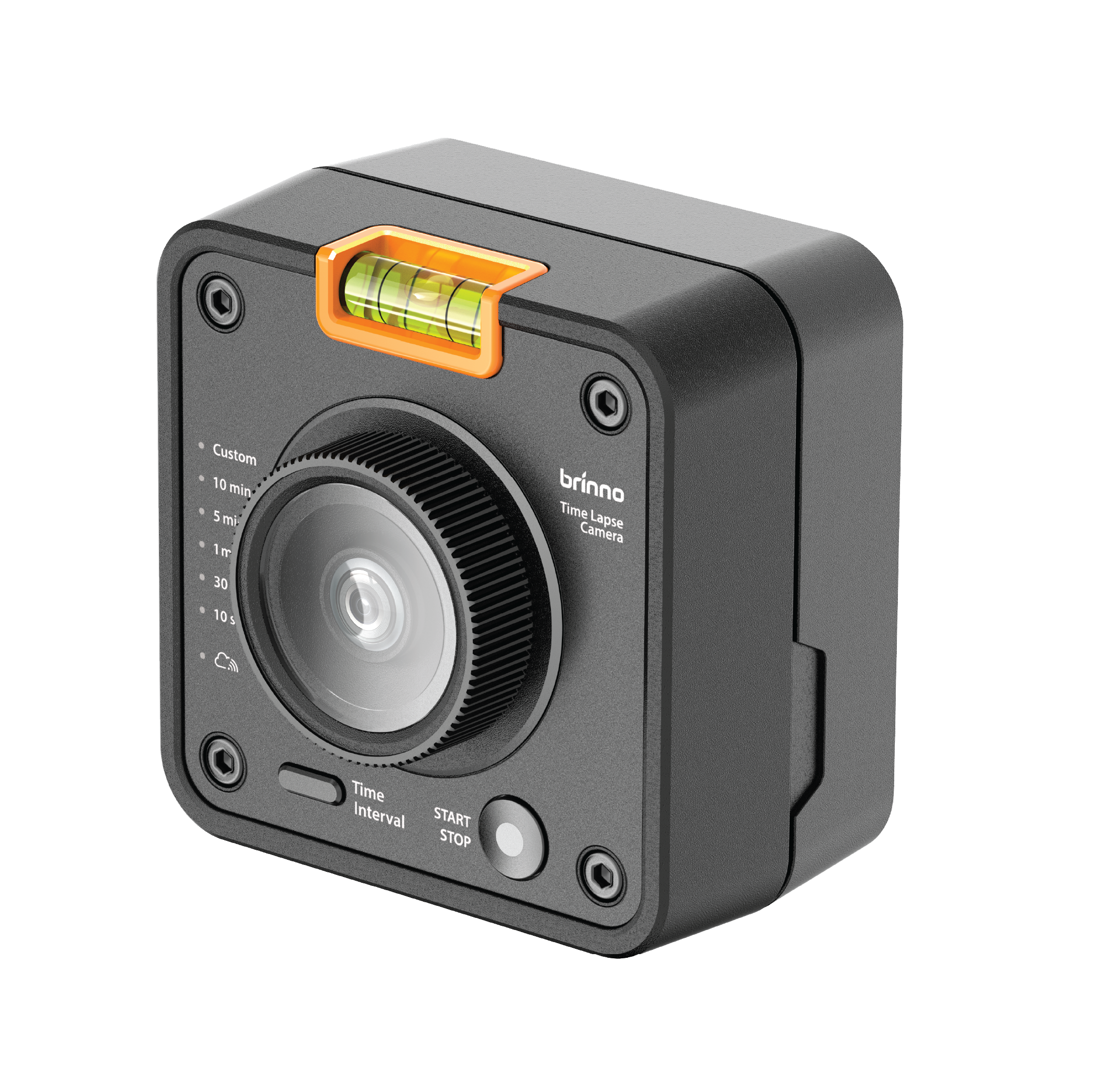

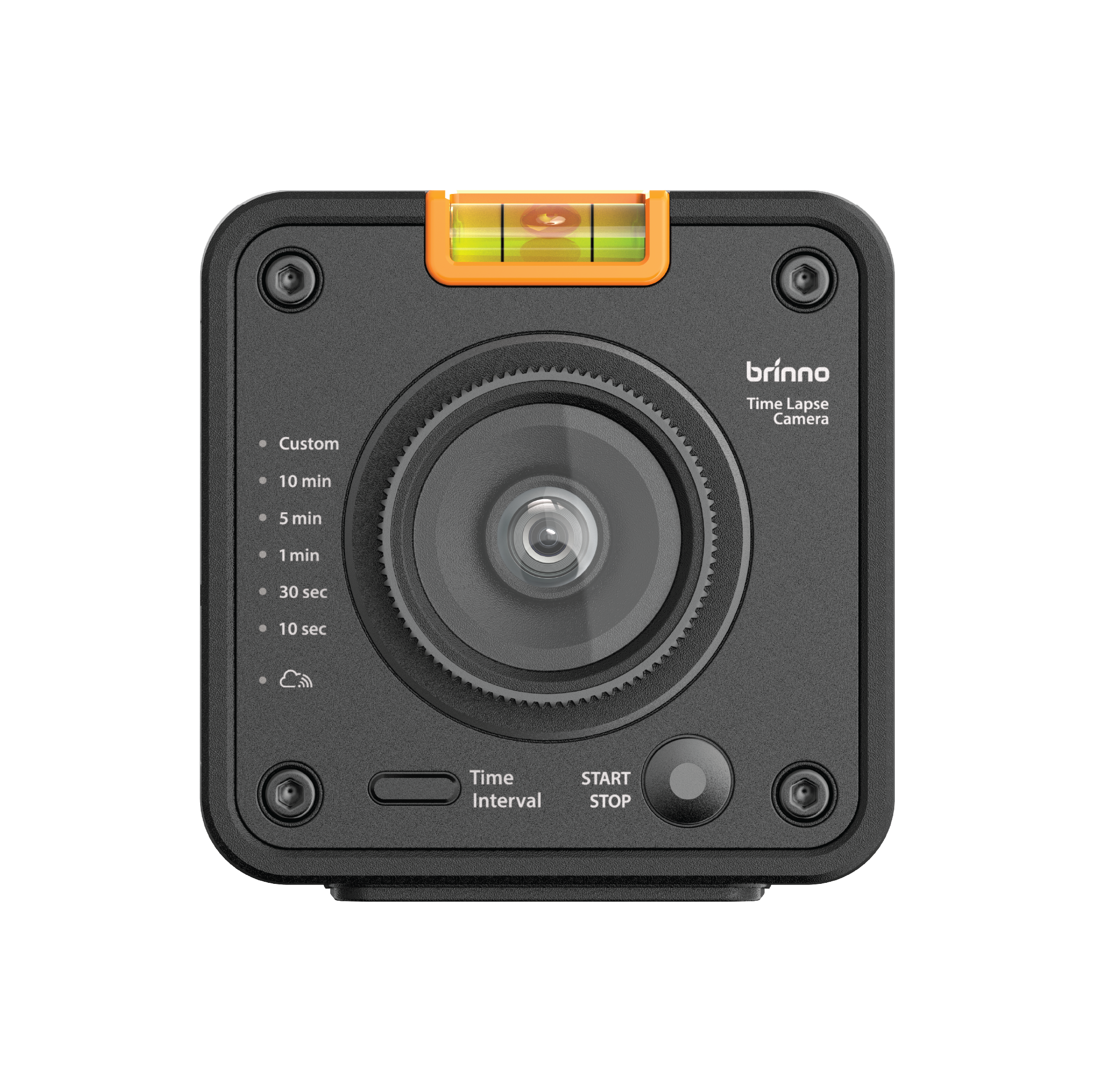

BCC5000 time lapse camera is Brinno’s most advanced solution yet, designed for professional construction and industrial documentation. It combines 4K UHD clarity, cloud-enabled connectivity, and rugged hardware to support months of continuous operation in outdoor job sites At the heart of the BCC5000 bundle is the TLC5000 camera, equipped with a 1/1.8″ Sony STARVIS 2 image sensor. It captures high-detail time lapse footage even in low light conditions, making it suitable for critical documentation in various lighting scenarios.
Remote Management via Wi-Fi and Bluetooth

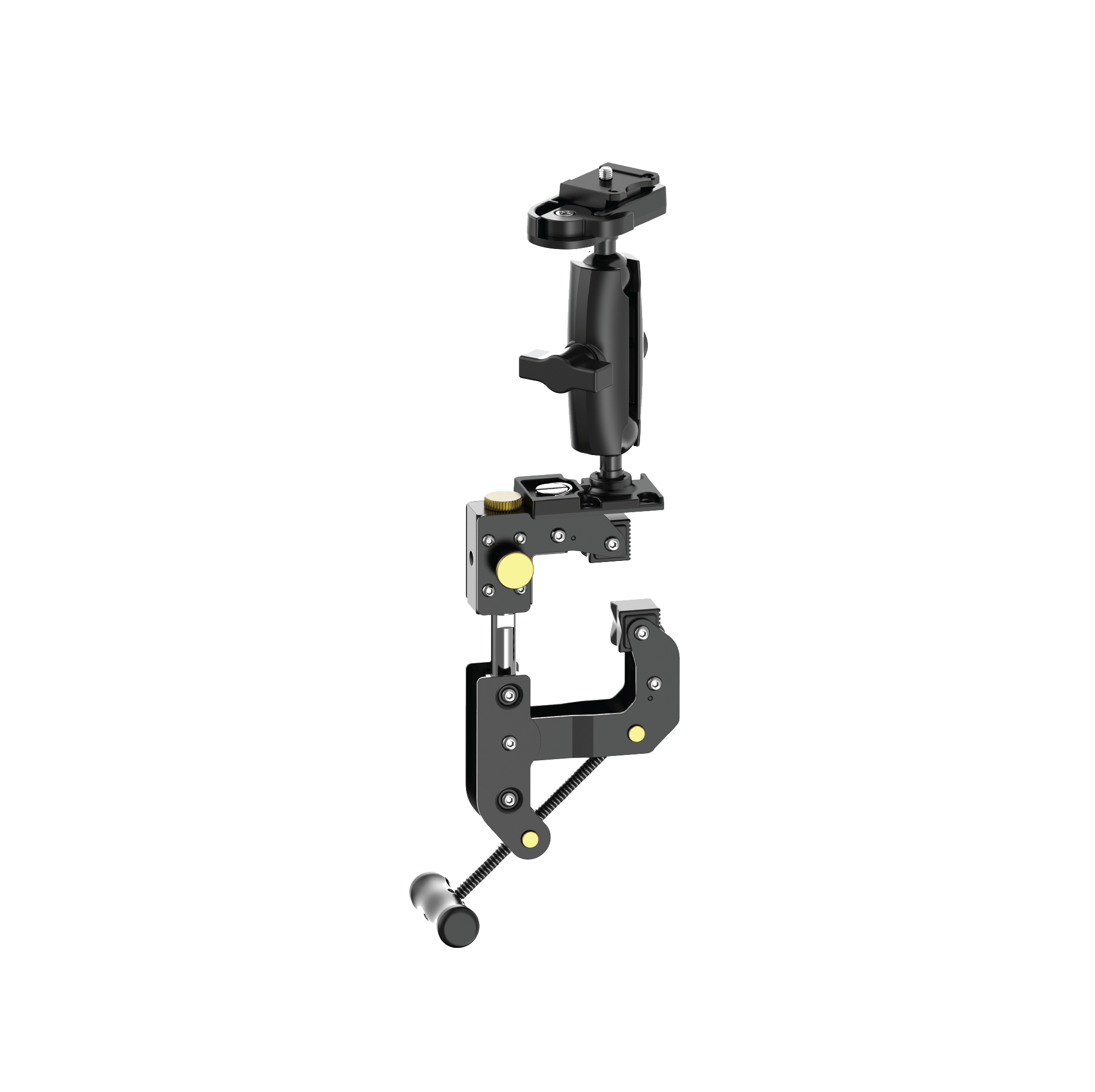

Thanks to built-in 2.4GHz Wi-Fi and Bluetooth 4.0, users can preview, configure, and manage files remotely using the Brinno Command Center App. Moreover, this feature eliminates the need for climbing scaffolding or accessing mounted cameras physically. The ACC5000 clamp mount kit includes a stainless-steel arm, adjustable joints, and extension poles. As a result, mounting the BCC5000 time lapse camera on poles, beams, or fences is quick, safe, and secure—even in elevated locations.
Quick Operating Design
Get your project recording in minutes with BCC5000’s user-friendly quick setup. With simple controls and straightforward menu options, even first-time users can initiate professional-grade time lapse recording with minimal effort.
Remote Cloud Access
Seamlessly connect to the cloud and manage your projects remotely with the BCC5000 time lapse camera for construction time lapse. Thanks to its cloud integration, users can preview live frames, monitor battery status, manage storage, and access footage anytime—ensuring full project oversight without the need for onsite presence.
All-Day Clarity Imaging
Designed for professional environments, the BCC5000’s advanced sensor ensures excellent image quality under all lighting conditions, from bright daylight to low-light dusk. It balances exposure and captures vivid, detailed visuals throughout the entire day, enhancing project documentation.
Mobile APP Control
Take full control of your BCC5000 time lapse camera for construction time lapse using the intuitive Brinno App. Remotely configure settings, initiate or stop recordings, and access footage directly from your smartphone streamlining workflows and maximizing efficiency on dynamic construction sites.

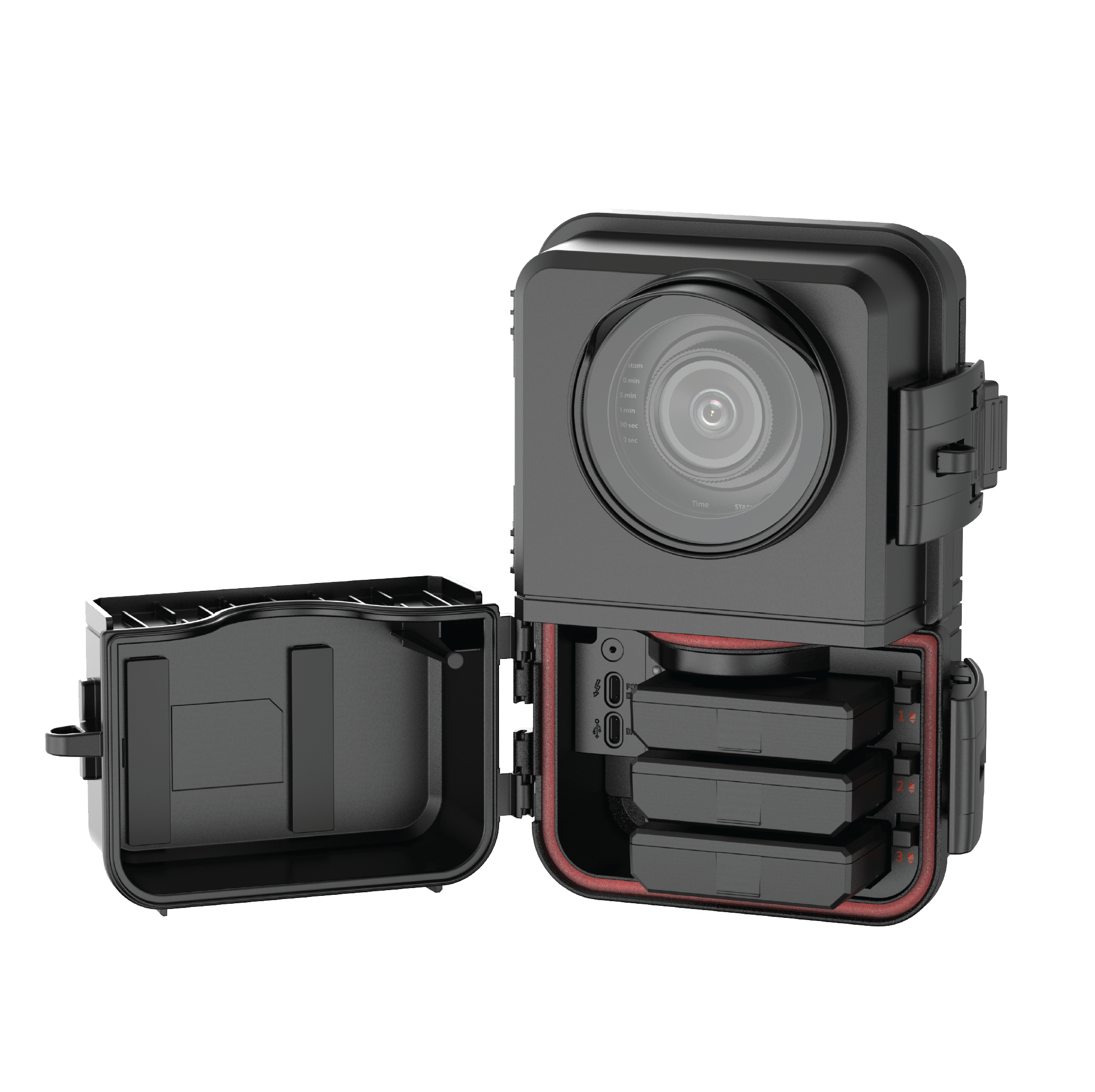

Built for Harsh Environments with IP65 Housing

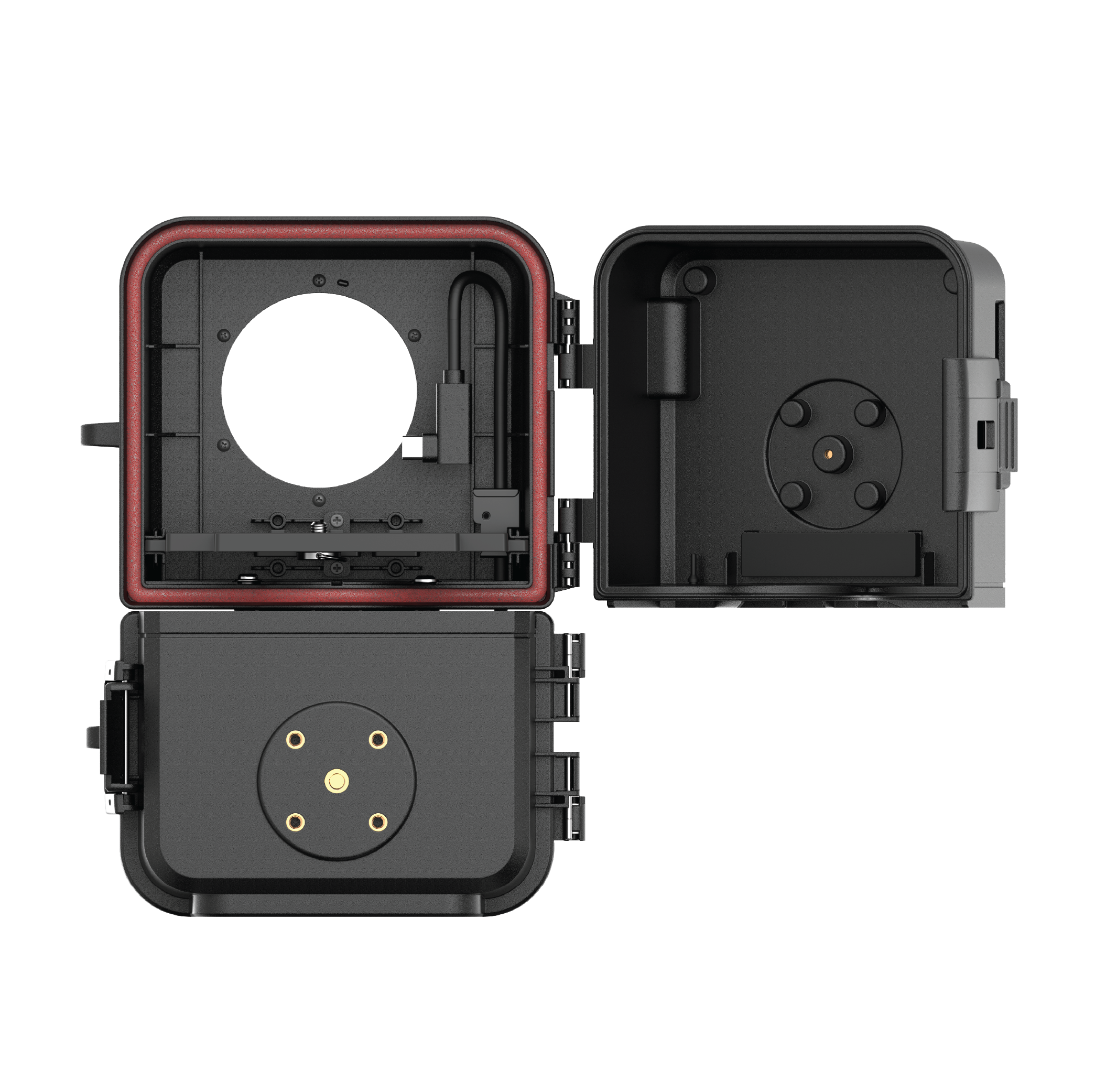

The included ATH5000 weather-resistant housing provides IP65-rated protection against dust, rain, and construction debris.In addition, the camera is compatible with the MRB1000 rechargeable battery pack, allowing up to 200 days of operation with a 5-minute interval setting. You can also compare it to the BCC2000 construction kit or explore the TLC5000 camera if you're looking for more customisation.For full specs, accessories, and documentation, visit the official Brinno BCC5000 product page.
Cloud-Enabled Remote Access
Access your time-lapse footage from anywhere with remote cloud access, ensuring seamless management and monitoring of your projects from any location.
Bluetooth Connectivity
The seamless Bluetooth connection between the time-lapse camera and your mobile device enables convenient equipment control, making it easy for anyone to operate.
Mobile APP Control
Take control of your camera remotely with the Brinno mobile app, allowing you to adjust settings, monitor the live view, and easily start recording from your smartphone.
Camera Parts
Power Housing Parts

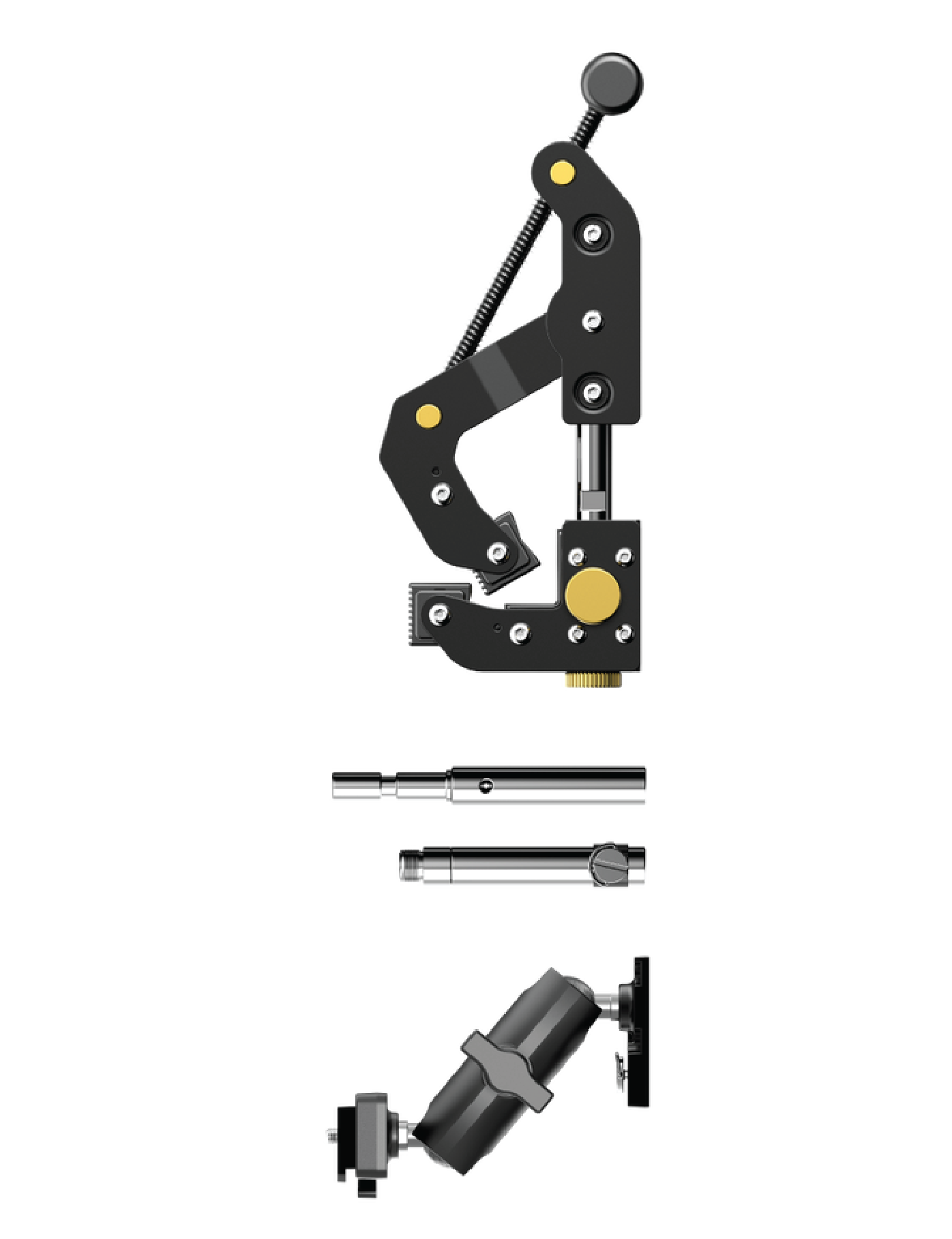

Clamp Parts

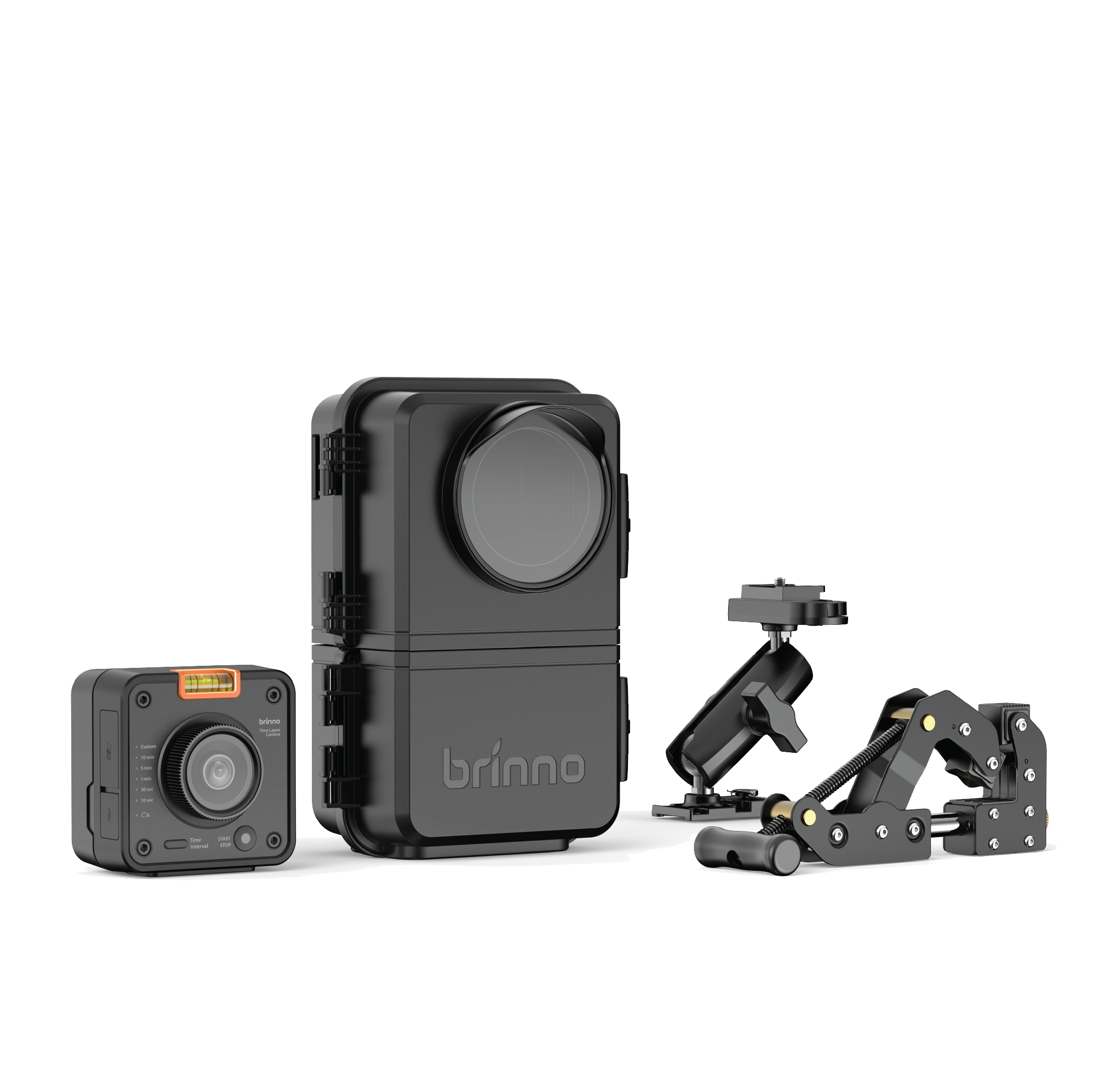

IN BOX

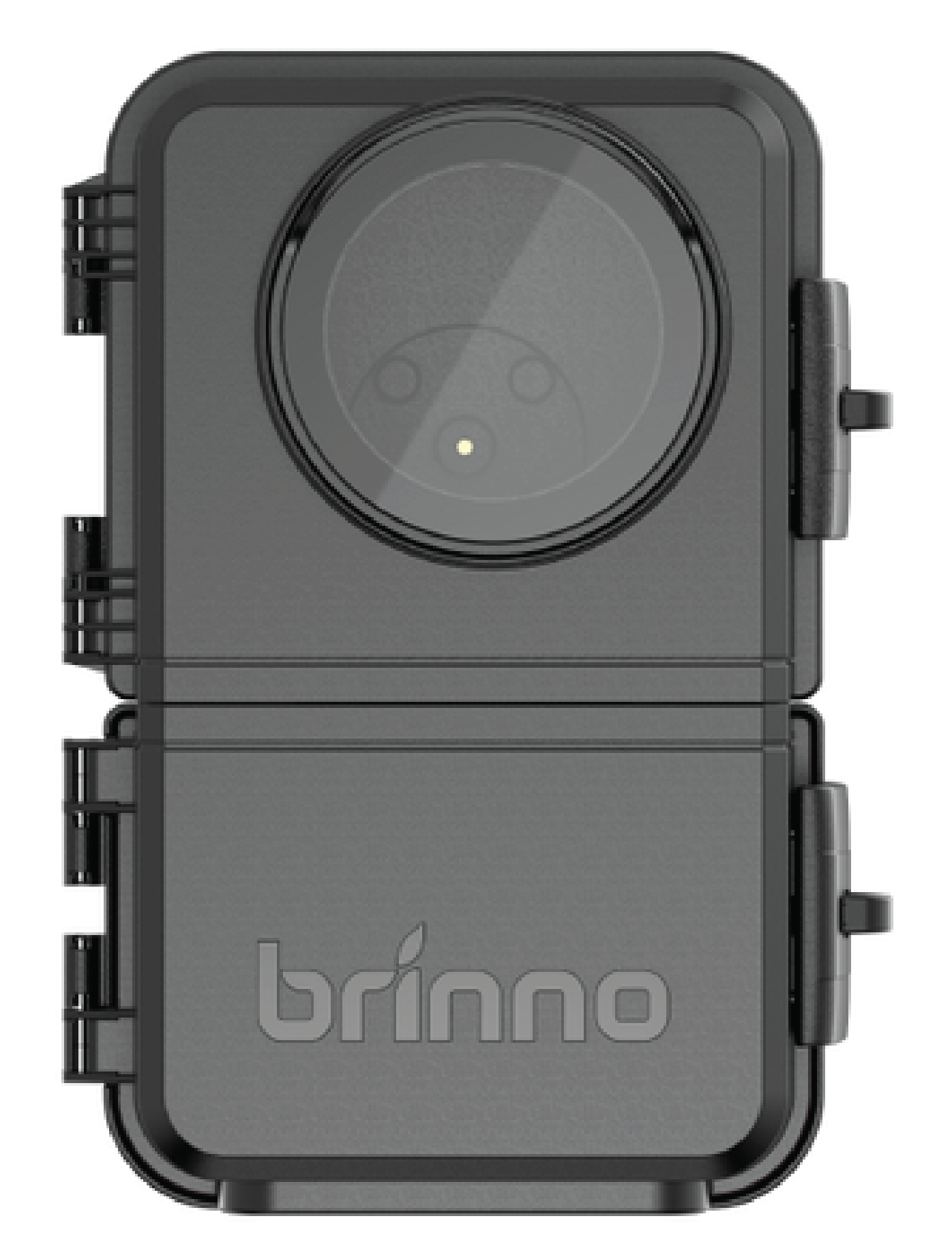

ATH5000
BCC5000
ACC5000
MRB1000 x2

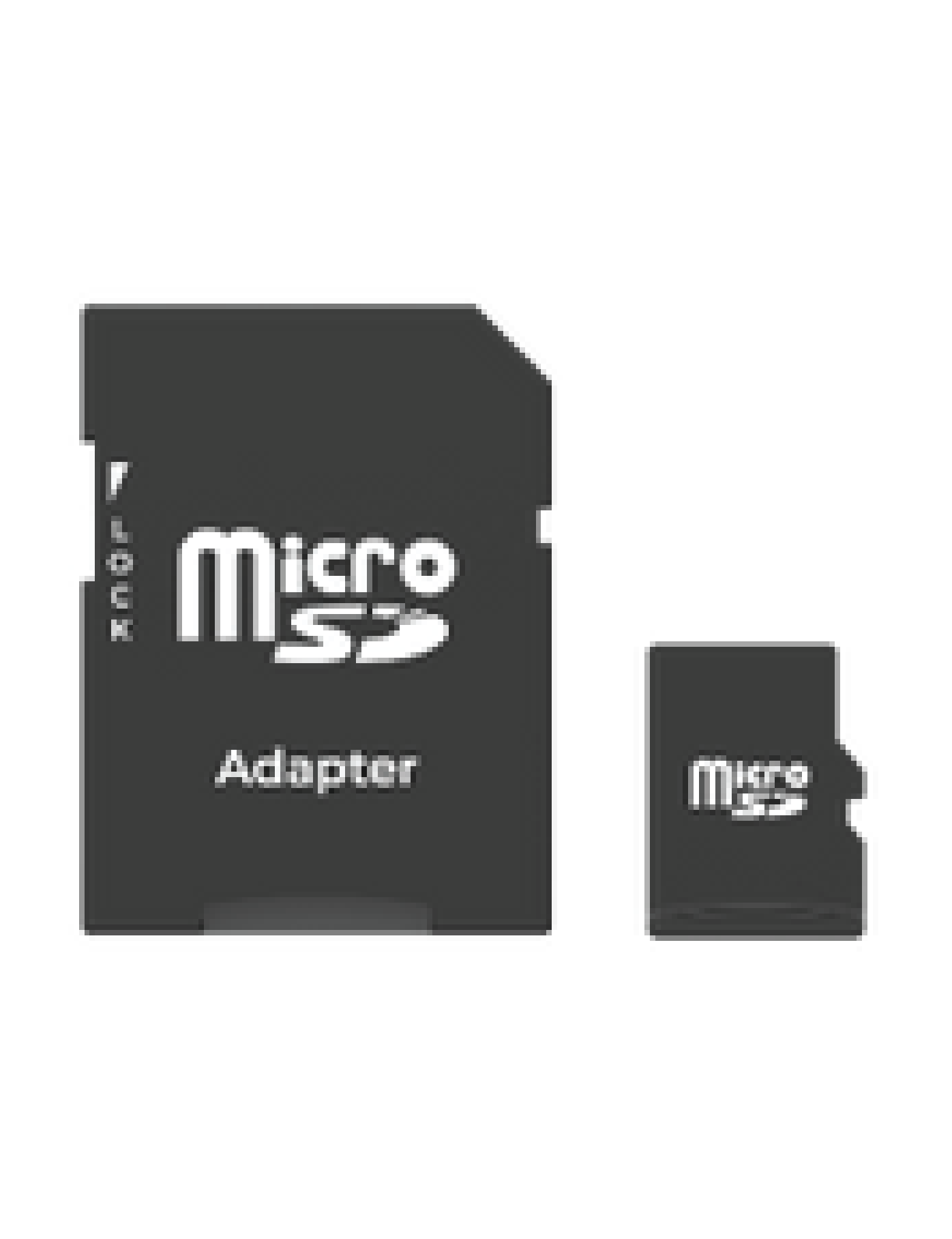

Micro SD adapter & Micro SD
Quick Guide
| Model | TLC5000 |
| Resolution | 4K (UHD) |
| Image Sensor | 1/8" SONY STARVIS 2 |
| Pixel Size | 2.0 µm (H) x 2.0 µm (V) |
| Aperture | F2.0 |
| Focal Length (Actual) | 2.8 mm (Actual); 13 mm (35mm equivalent) |
| Video Format | MP4; Motion JPEG |
| Wireless Connectivity | BLE 4.0, Wi-Fi 802.11 b/g/n (2.4GHz) |
| Power Source | Rechargeable battery pack (MRB1000); DC IN 5V 2A (USB-C connector) |
| Construction Power Housing ATH5000 | |
| IP-Rating | IP65 |
| Extra Battery Bay (WxHxD) | 6 x 4 x 1.3 in (170 x 104 x 236 mm) |
| Dimensions (WxHxD) | Camera Waterproof Housing (ATH400) |
| External Battery Slot | ABS5000 |
| Camera Clamp Pro ACC5000 | |
| Clamping Range | Tube: 0.4 - 3.5 in (10 - 90 mm) Flat surface: 0.4 - 3.5 in (1 - 90 mm) |
| Load Capacity | Clamp: 110 lb (50 kg) (without extension pole) Magic Arm: 6.6 lb (3 kg) |
| Materials | Clamp: Stainless, Aluminum Extension Pole: Stainless, Aluminum |

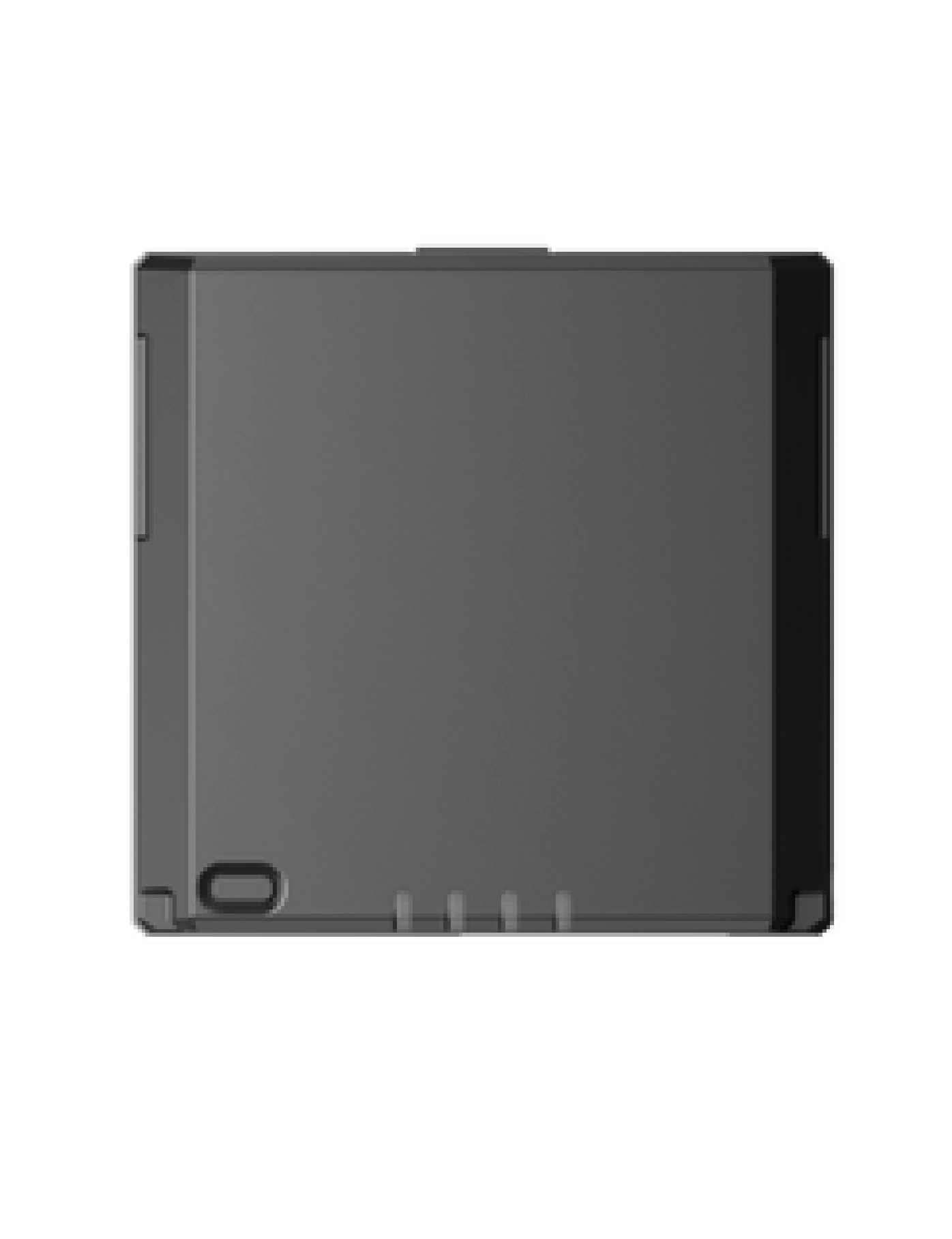

| Rechargeable Battery MRB1000 | |
| Energy Capacity | 12600 mAh / 45.4 Wh |
| Input/Output Port | USB-C (on battery pack) (Support 5V 2.1A quick charger) |
| Ambient Temperature | 4°F ~ 140°F (-20°C ~ 60°C) |
Related products

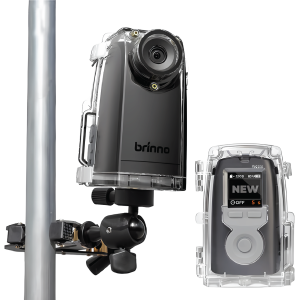

BCC300-C – Brinno Time Lapse Camera Bundle
Easily set up your Brinno Time lapse camera – BCC300-C in bright environments and check the view angle without screen glare with the TLC300’s crystal-clear IPS LCD panel. Brinno’s newly updated user interface offers a faster setup and a more user-friendly filming experience. Bundled with everything you need to get started, the BCC300-C comes with an IPX4 weatherproof housing, mounting accessory, and two bungee cords, making it your perfect jobsite companion.

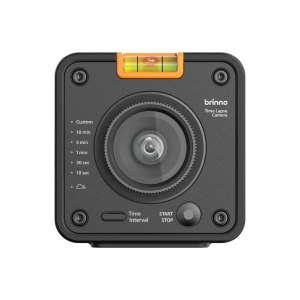

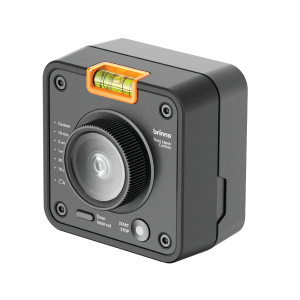

TLC5000 – Brinno Professional 4K Time Lapse Camera
Brinno TLC5000 is a professional-grade 4K time lapse camera built for long-term documentation in demanding environments. Engineered for construction, industrial, and environmental monitoring, the TLC5000 captures crystal-clear time lapse videos with minimal effort. With its durable design, HDR support, and interchangeable CS-mount lenses, it adapts to various outdoor conditions. Moreover, the camera offers extended battery life and weatherproof compatibility, making it a reliable tool for continuous, unattended recording. Whether you're tracking project progress or observing natural changes, the TLC5000 ensures sharp, consistent results over time.

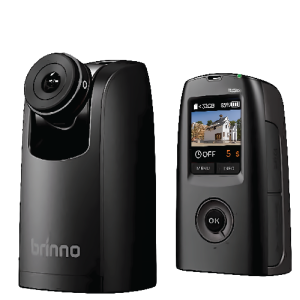

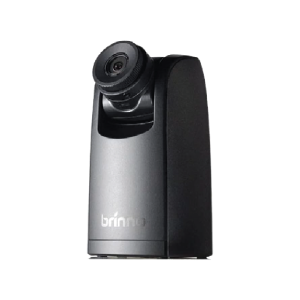

TLC300 – Brinno Time Lapse Camera
Capture every stage of your construction project with unmatched clarity and convenience using the Brinno TLC300. Specifically engineered as a construction time lapse camera, the TLC300 combines Brinno’s legendary reliability with a user-friendly interface and advanced features, making it the ideal solution for long-term project documentation. Whether you're overseeing a residential build, a commercial development, or infrastructure work, the Brinno TLC300 ensures seamless time lapse recording with minimal setup. Featuring Full HD resolution, adjustable schedule settings, and long battery life, this rugged camera is built to perform in challenging jobsite environments. Elevate your construction monitoring and impress stakeholders with cinematic, high-impact time lapse videos — effortlessly created using Brinno’s TLC300.

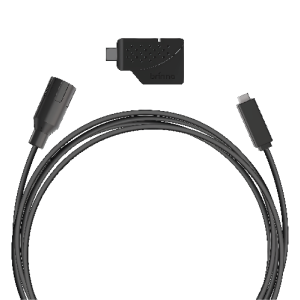

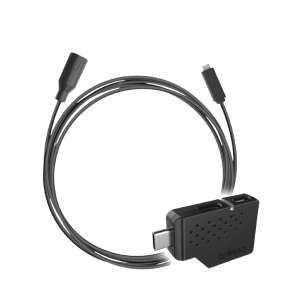

AFB1000 – Brinno Adjustable Fixture for BCC2000BCC2000 Plus
Enhance your Time lapse camera for construction with the AFB1000 camera extender kit. Featuring a 32ft (10m) cable, it allows remote access to your camera via the Brinno Command Center, enabling real-time control and monitoring. Ideal for construction projects, it ensures uninterrupted recording and simplifies data transfer, making it a must-have accessory for professionals seeking efficiency and flexibility.

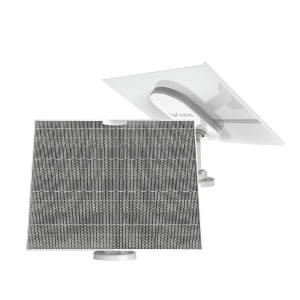

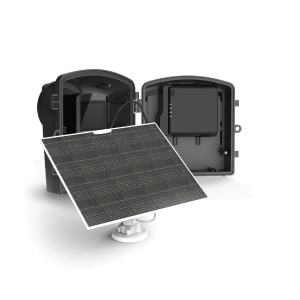

ASP1000P – Brinno Solar Power Kit
The Brinno ASP1000P Solar Power Kit is a powerful solution for long-term time-lapse and site monitoring applications. Designed with a high-efficiency 10W solar panel and built-in battery management, it provides sustainable, off-grid power for Brinno time-lapse cameras, ensuring continuous operation in remote or challenging environments. Ideal for construction projects, environmental research, and outdoor surveillance.

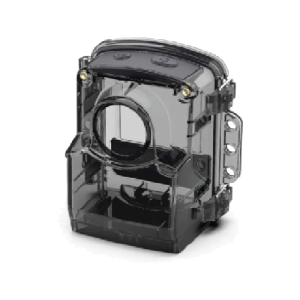

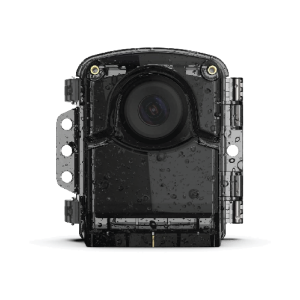

ATH1000 – Brinno Waterproof Housing
Brinno ATH1000 waterproof housing is built to protect your time lapse camera from dust, rain, and harsh weather. Designed for outdoor use, it allows easy access to camera controls without removing the case—ideal for long-term documentation on construction sites or in nature. Equipped with a moisture absorber, it prevents internal fogging and keeps your footage clear in humid conditions. Its heavy-duty mounting straps offer secure installation on poles, fences, and uneven surfaces, even in high-vibration environments. Compatible with Brinno cameras like the TLC2000 and BCC2000, the ATH1000 ensures your gear stays safe and accessible during extended outdoor filming. For full specifications, visit accessories page at the Optix store.

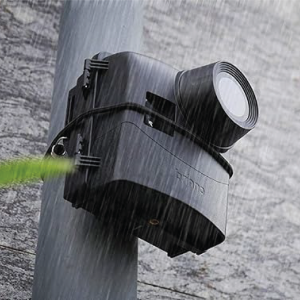

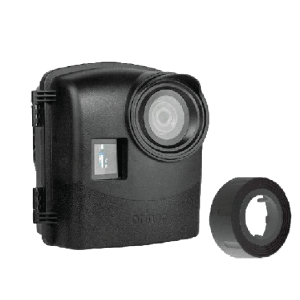

ATH2000 – Brinno Weather Resistant Housing
