AFB1000 – Brinno Adjustable Fixture for BCC2000BCC2000 Plus
Enhance your Time lapse camera for construction with the AFB1000 camera extender kit. Featuring a 32ft (10m) cable, it allows remote access to your camera via the Brinno Command Center, enabling real-time control and monitoring. Ideal for construction projects, it ensures uninterrupted recording and simplifies data transfer, making it a must-have accessory for professionals seeking efficiency and flexibility.
Remote Control, Real Results — Extend Your Camera’s Reach with AFB1000

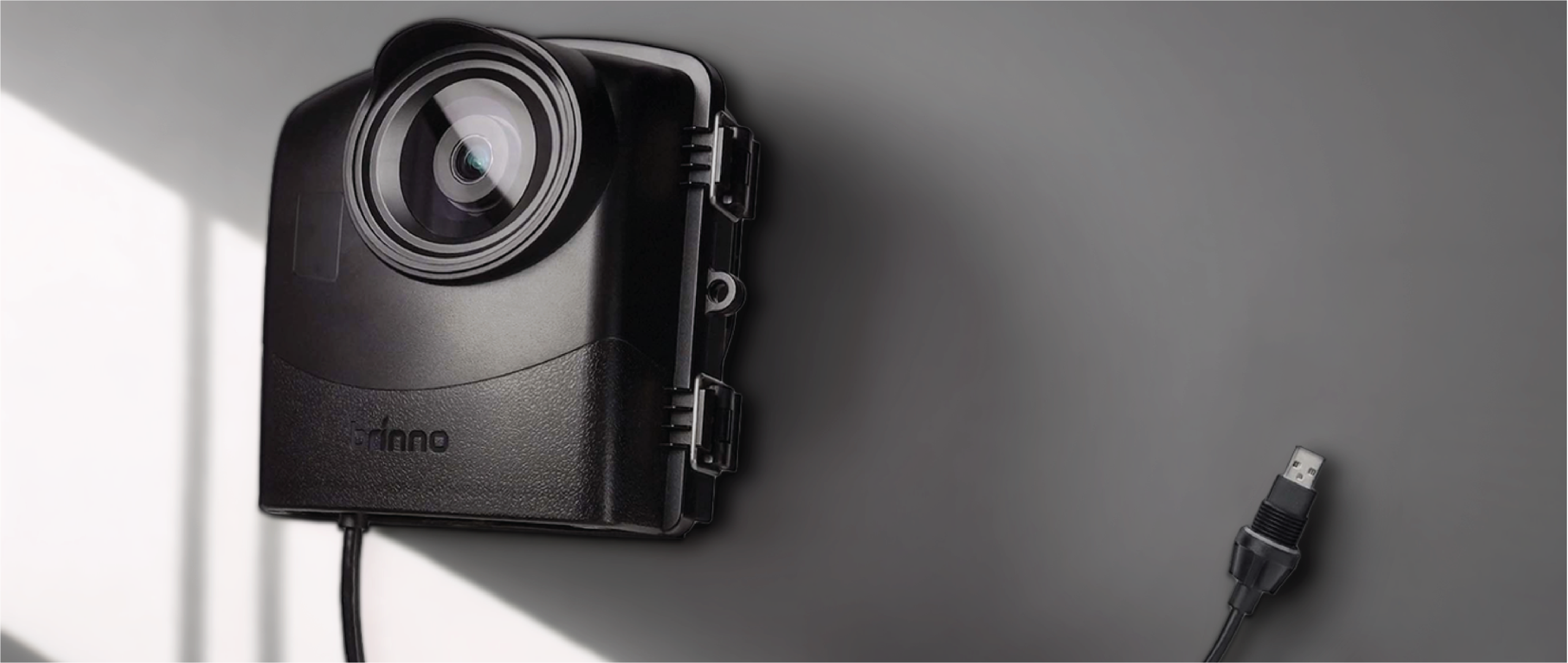

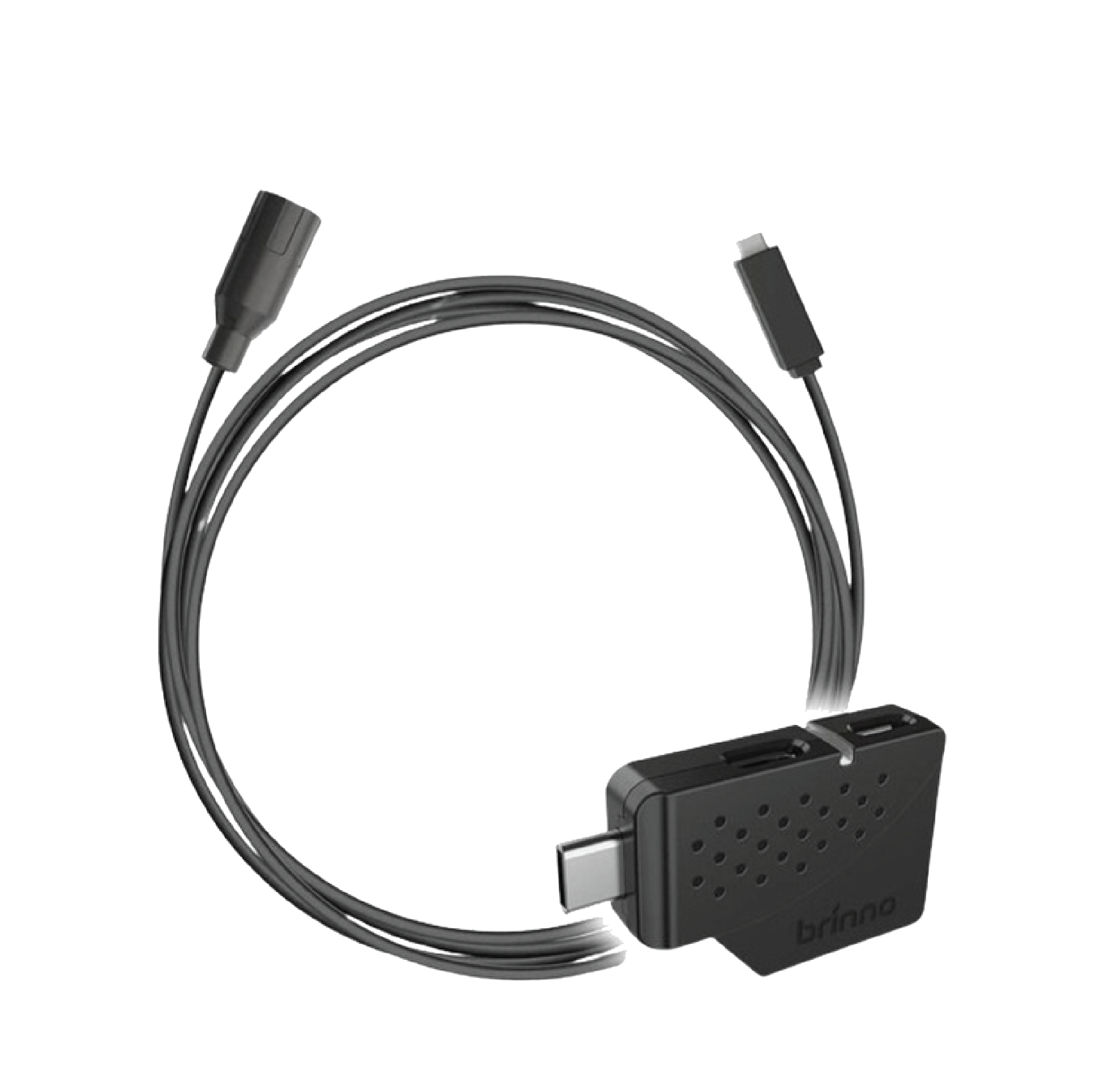

Brinno AFB1000 camera extender kit for BCC2000/BCC2000 Plus
AFB1000 camera extender kit is designed to give you flexible, real-time access to your time lapse camera in challenging environments like construction sites. With a 32ft (10m) cable, this kit extends your connection to the Brinno BCC2000 or BCC2000 Plus, allowing remote operation through the Brinno Command Center software.
Real-Time Camera Control via USB-C
AFB1000 camera extender kit enables stable, long-distance communication between your Brinno camera and a connected computer or mobile device. Thanks to its USB-C interface and durable cable design, you can place your camera at height or in difficult-to-reach areas while maintaining full access to settings, live preview, and file downloads—without physically touching the device. Moreover, it reduces the need for frequent manual adjustments, making your workflow safer and more efficient in active construction zones.
Simutaneous Record & Download
The AFB1000 setup allows your Brinno Time lapse camera for construction to keep recording while footage is downloaded externally, eliminating downtime and ensuring continuous, uninterrupted documentation of your project’s progress.
High speed Data Transfer
Equipped with support for high-speed data transfer, the AFB1000 allows rapid downloading of time lapse files without interrupting ongoing recording, optimizing project efficiency and data management
32ft Ruggedized Cable
The AFB1000 includes a 32-foot heavy-duty cable engineered for outdoor use with your Brinno Time lapse camera for construction. UV-resistant and ruggedized, it ensures stable, secure connections even in extreme weather conditions—delivering reliable performance under intense sunlight, moisture, and fluctuating temperatures.
Brinno command center
Integrated with Brinno’s Command Center software, the AFB1000 enhances the functionality of your Time lapse camera for construction by enabling remote monitoring, configuration, and management of recording boosting control, efficiency, and productivity across large-scale job sites.
External Power
The AFB1000’s cable and connection system are designed to withstand outdoor elements with waterproof sealing, ensuring that your data transmission remains stable and protected even in adverse weather conditions.

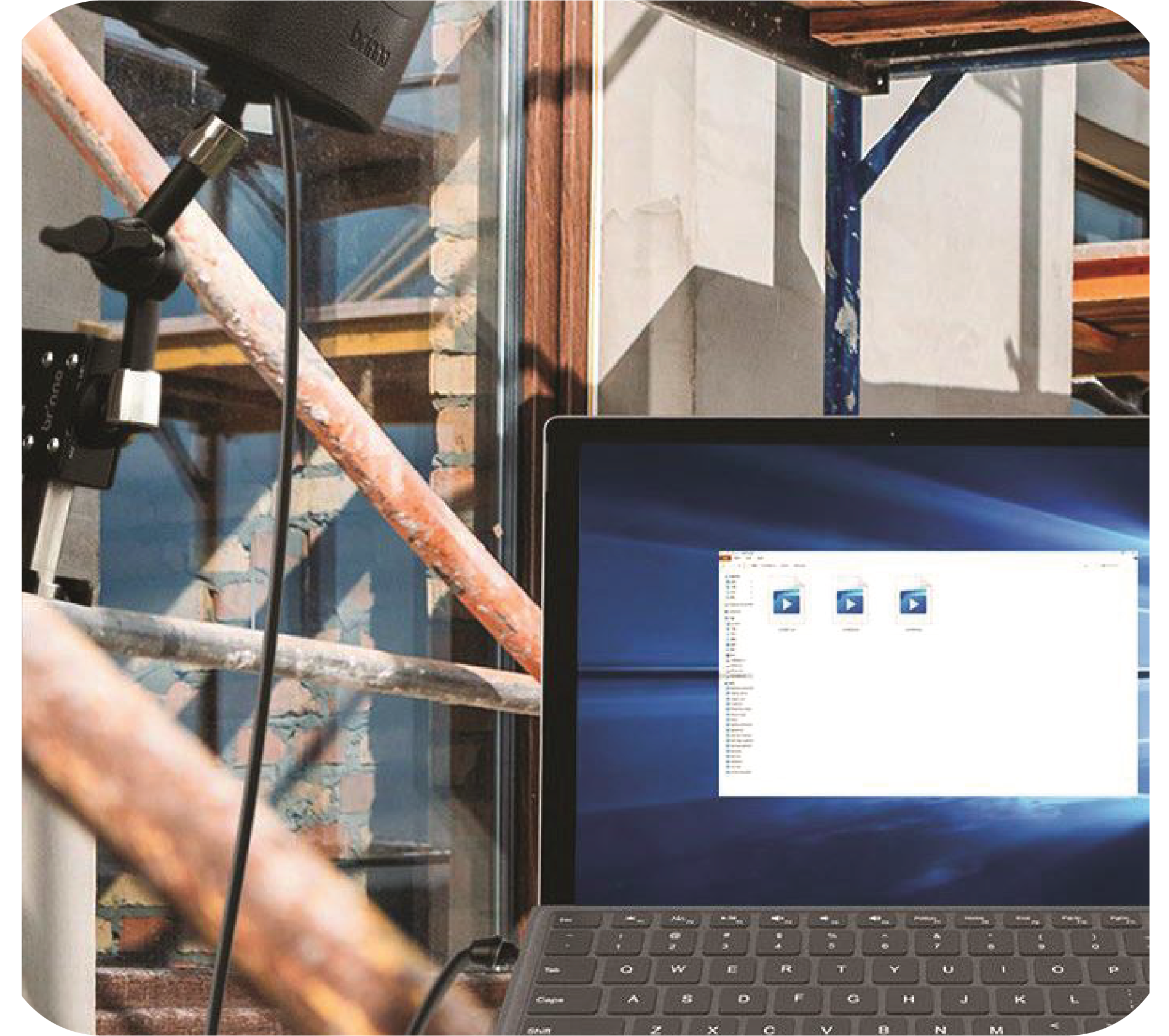

Simplified File Transfer and Remote Monitoring
Instead of climbing to retrieve SD cards or check the screen, users can manage everything from their laptop using the Brinno Command Center. This means less time on-site, faster data collection, and lower risk of interrupting recording. It’s the perfect solution for time lapse projects that run continuously for weeks or months and require secure, uninterrupted performance.Whether you're working on high-rise projects, infrastructure builds, or industrial sites, the AFB1000 extender cable keeps you connected, in control, and efficient. Pair it with BCC2000, BCC2000 Plus, or TLC300 to unlock full remote functionality. For full specs, visit the Brinno official AFB1000 page or explore more at the Triviontek accessories section.

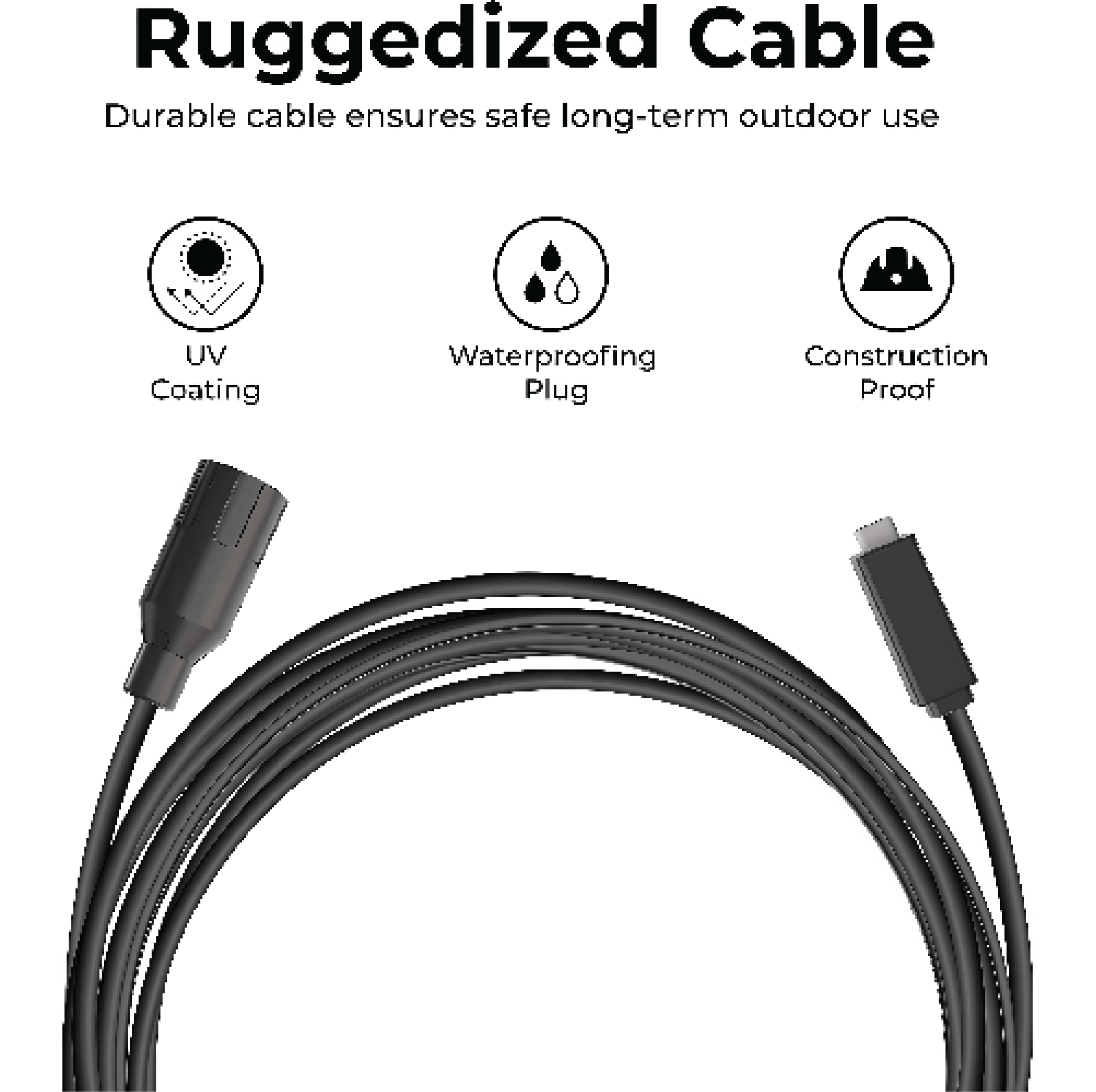

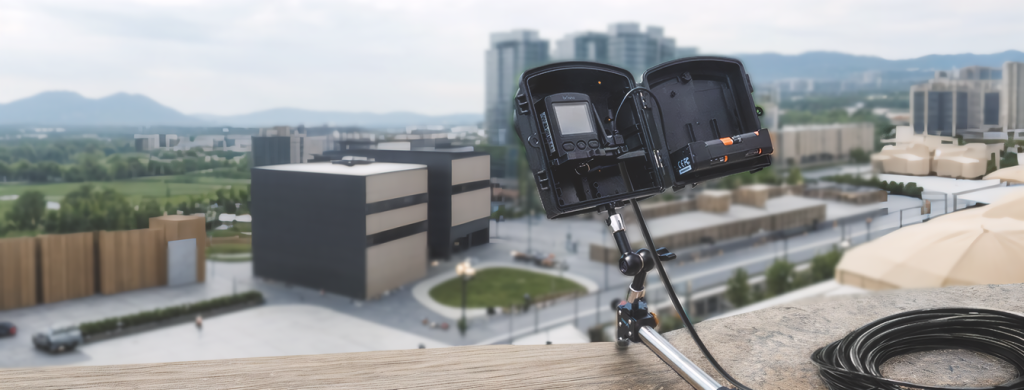

32 Ruggedized Cable
Connect to your camera from the ground using the 32ft (10m) durable, construction-proof cable. Our cable has a UV coating and a special waterproof plug and seal to ensure safe, long-term outdoor use.

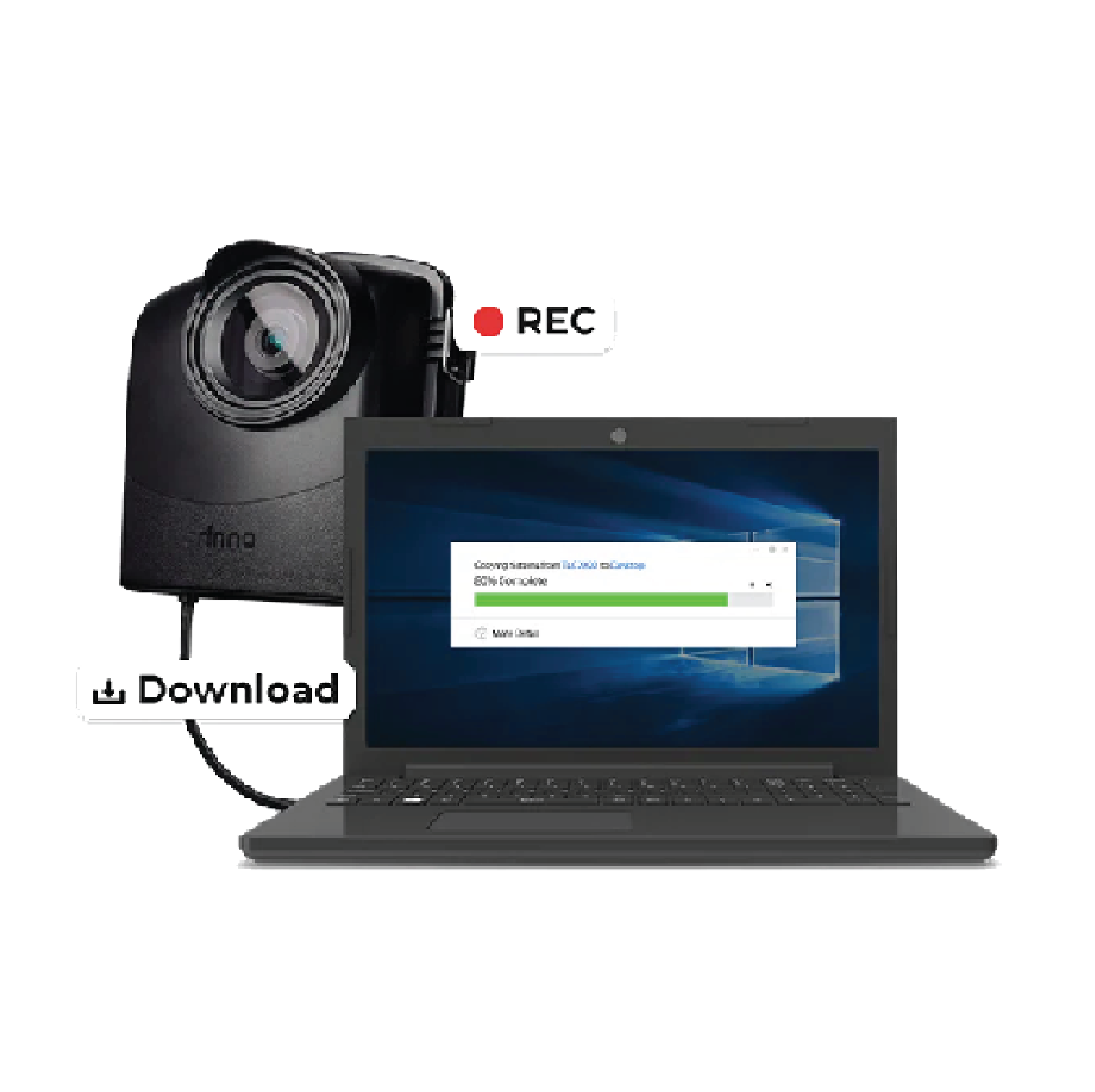

Simultaneous Record & Download
No need to stop recording; use the Extender Kit (AFB1000) to plug into your laptop and efficiently download time-lapse files without disrupting your filming schedule.
Laptop Command & Control
Gain access to our all-in-one camera command and control platform, the Brinno Command Center (Windows 64-bit OS). Preview the camera frame, adjust settings, monitor battery and SD card status, and more!

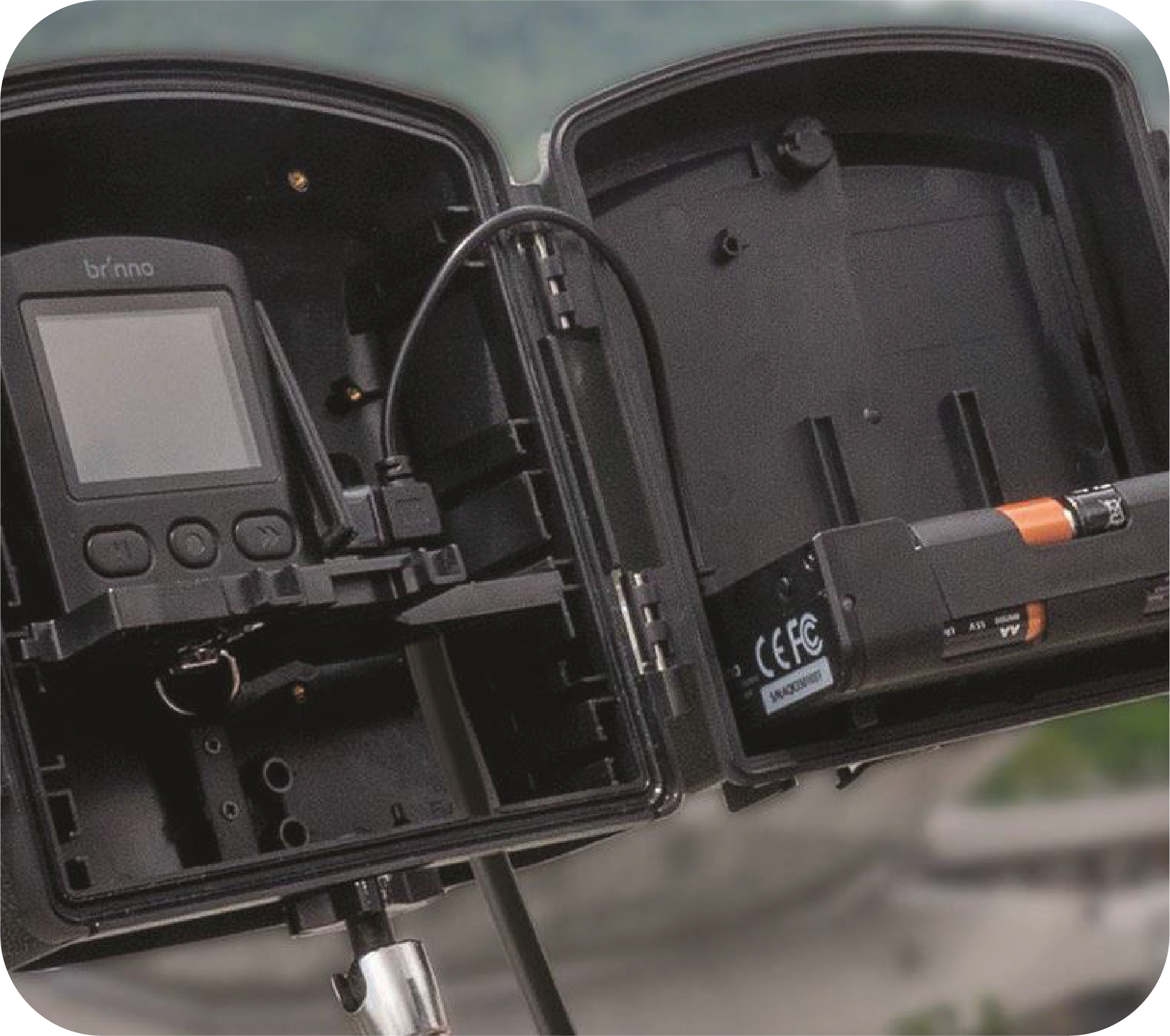

Unlimited Power
Coupled with the Power Housing (ATH2000)’s worry-free battery life and the Extender Kit’s ability to plug into external power, the BCC2000 Plus is the best solution for long-term filming.

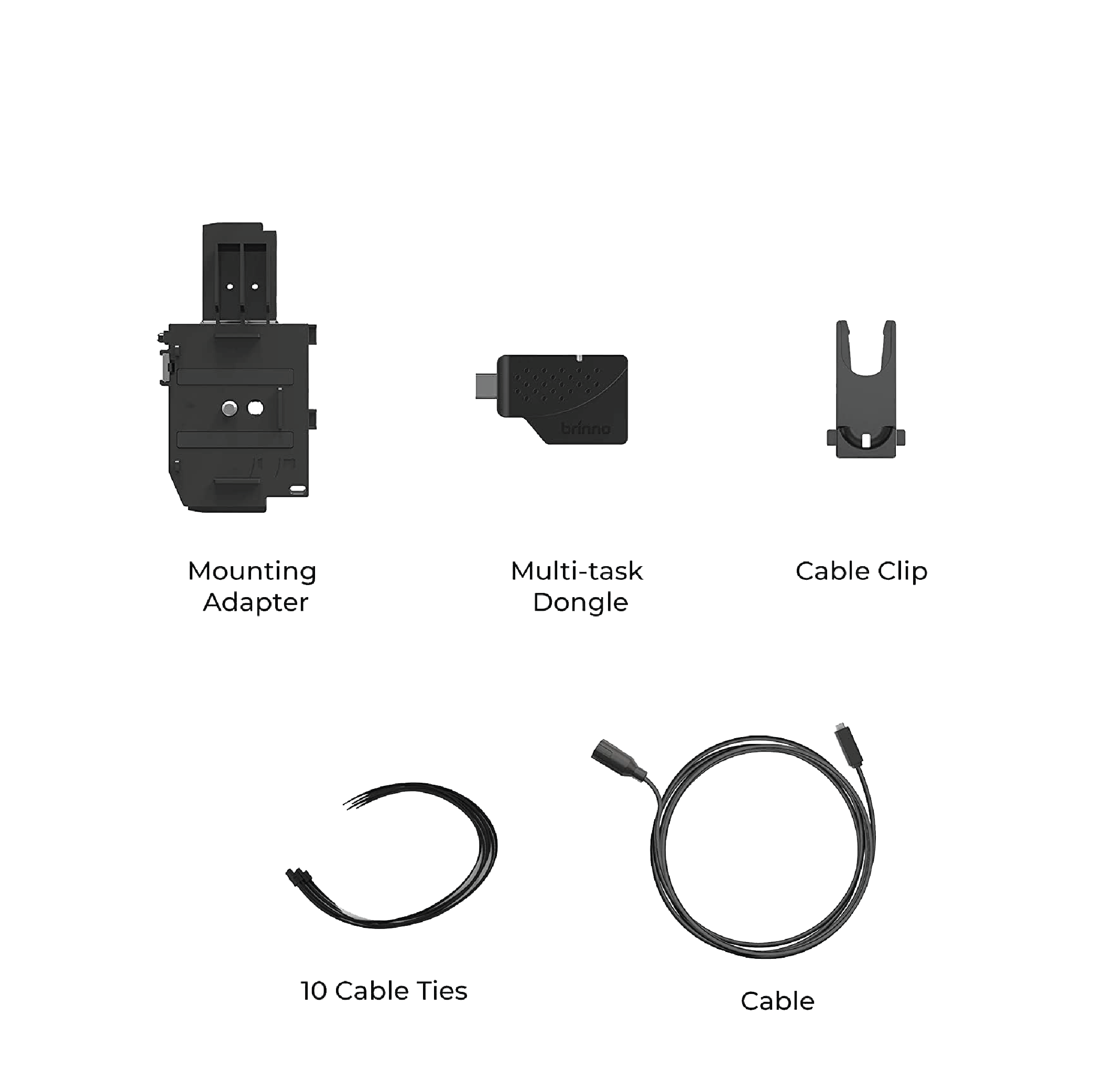

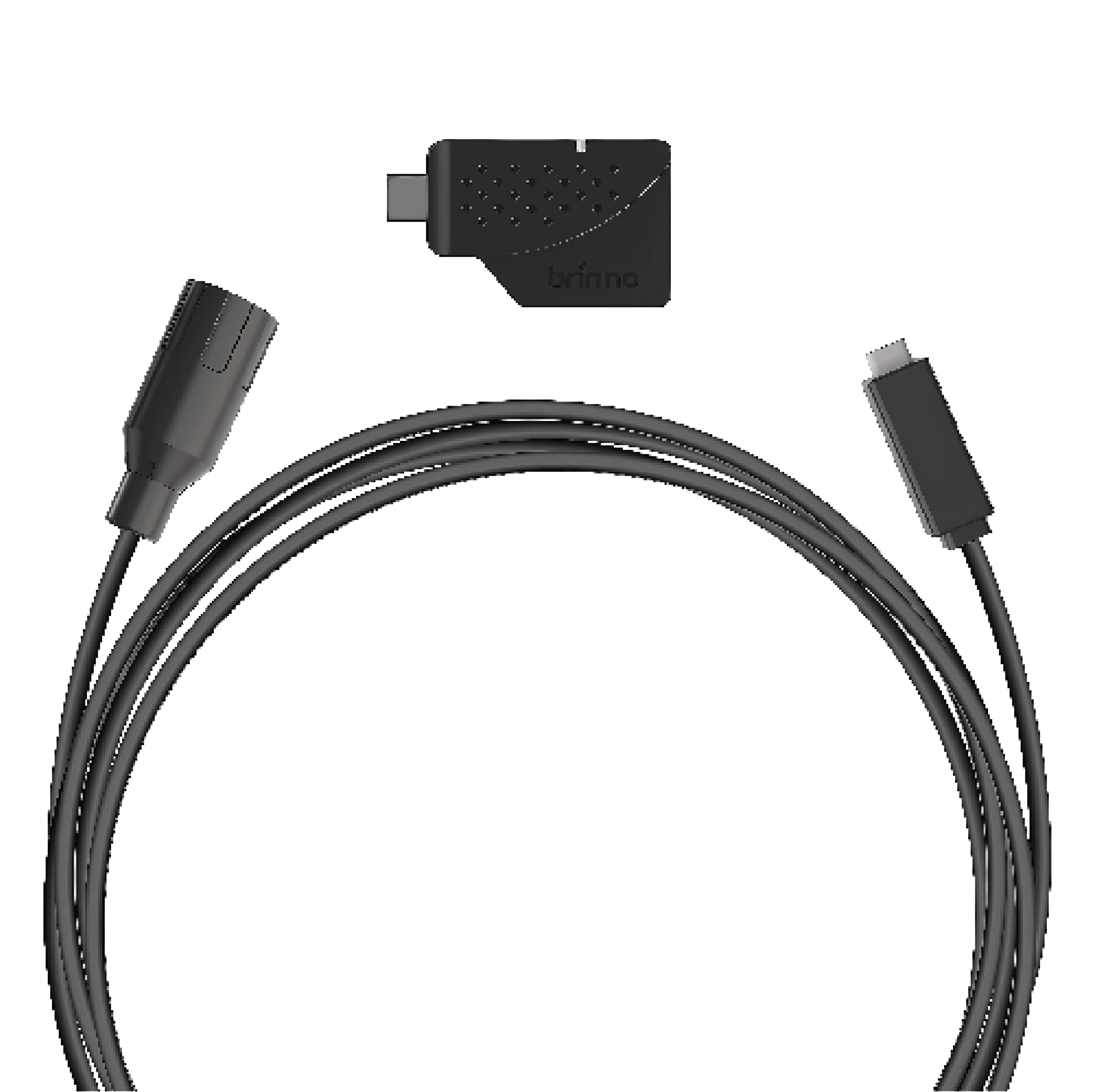

IN BOX

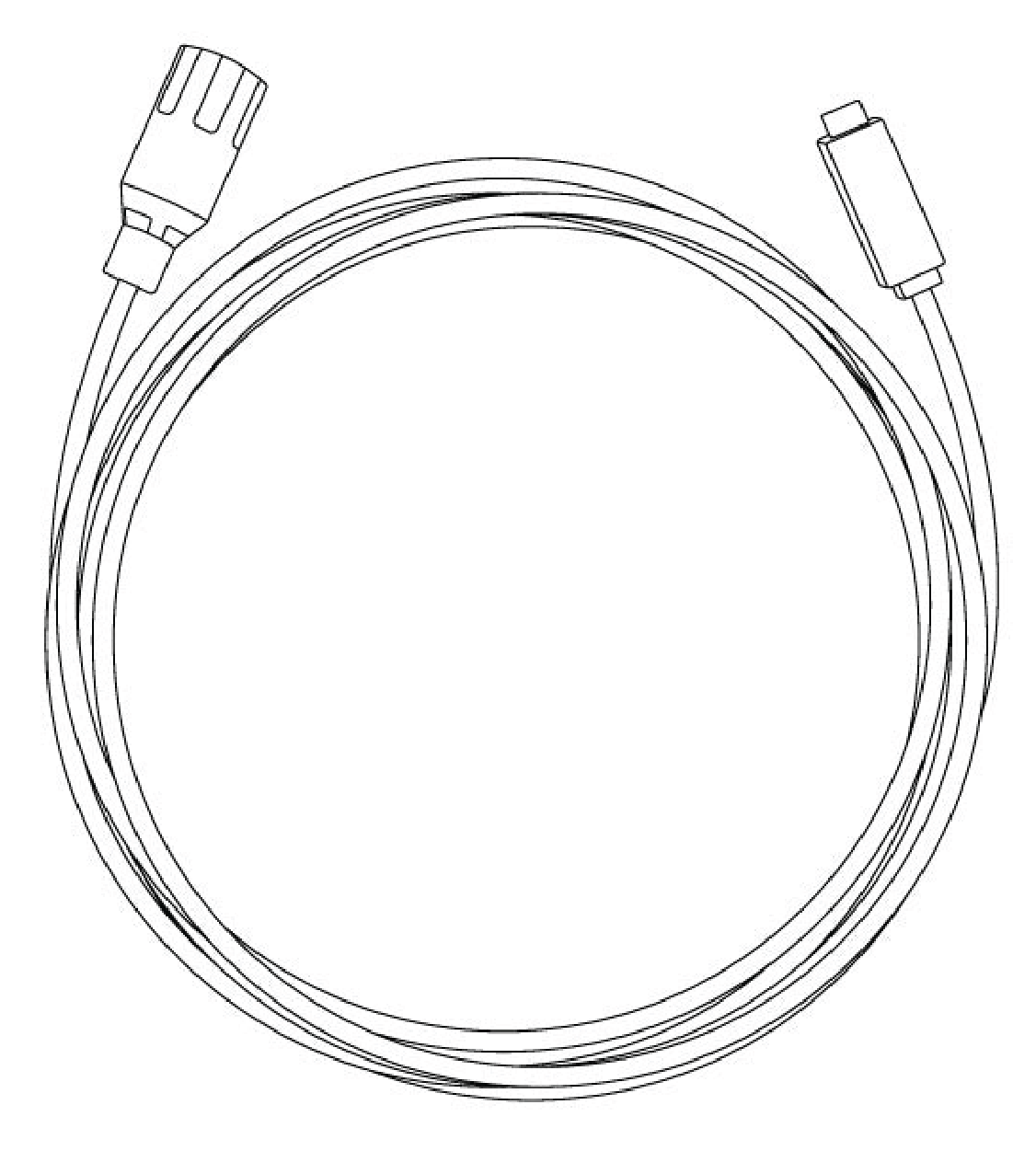

Cable

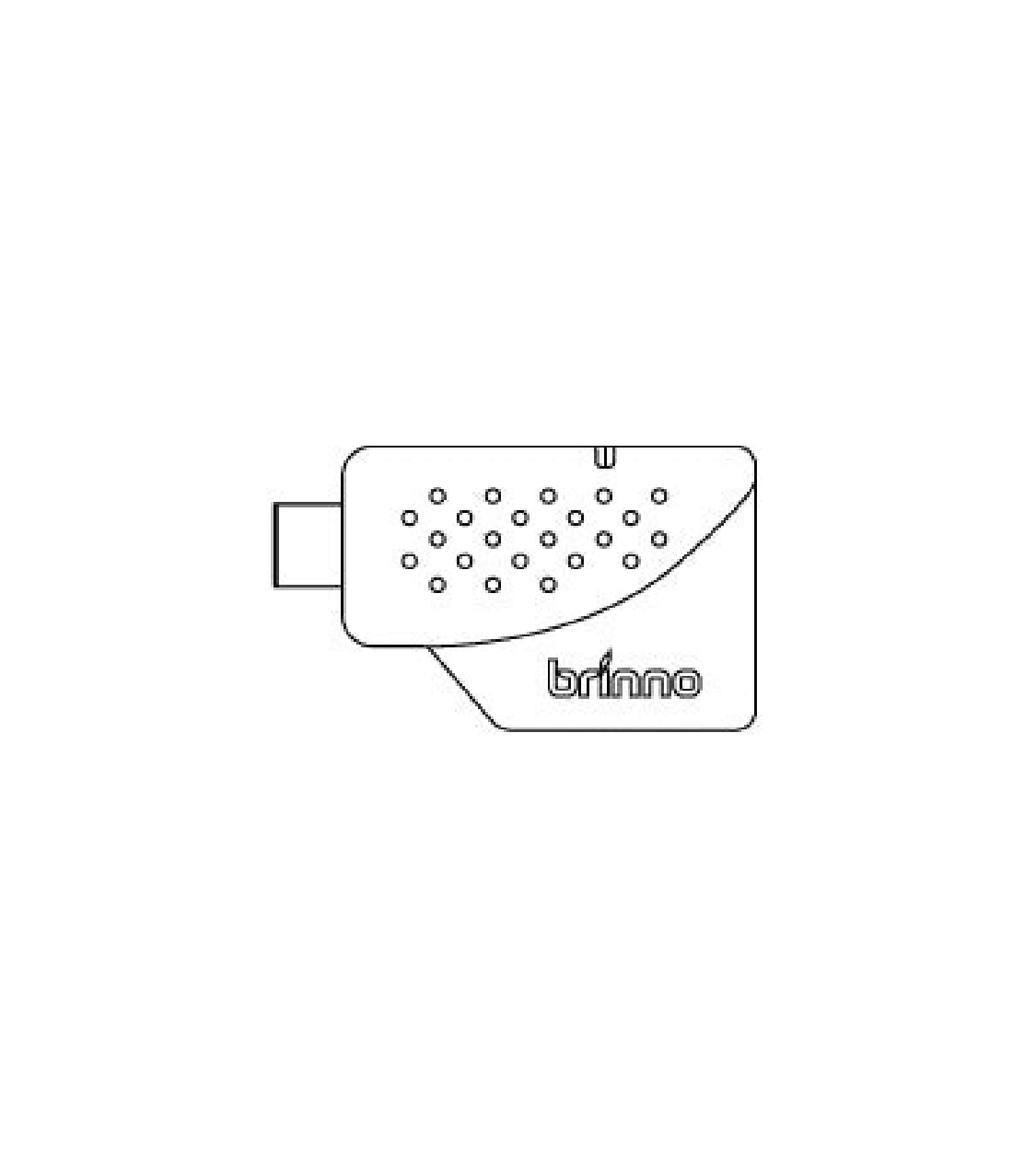

Multi-task Dongle

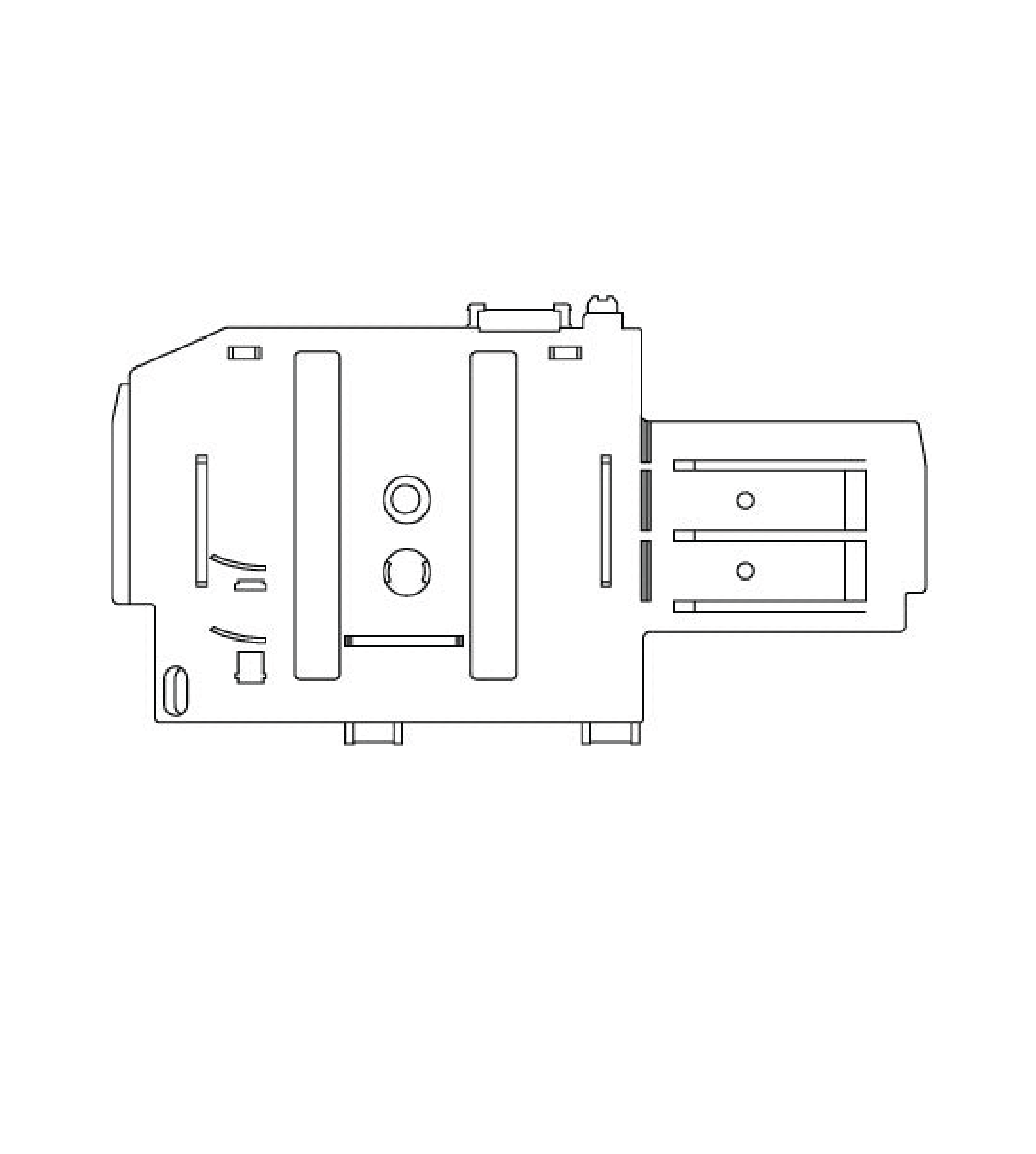

Mounting Adapter

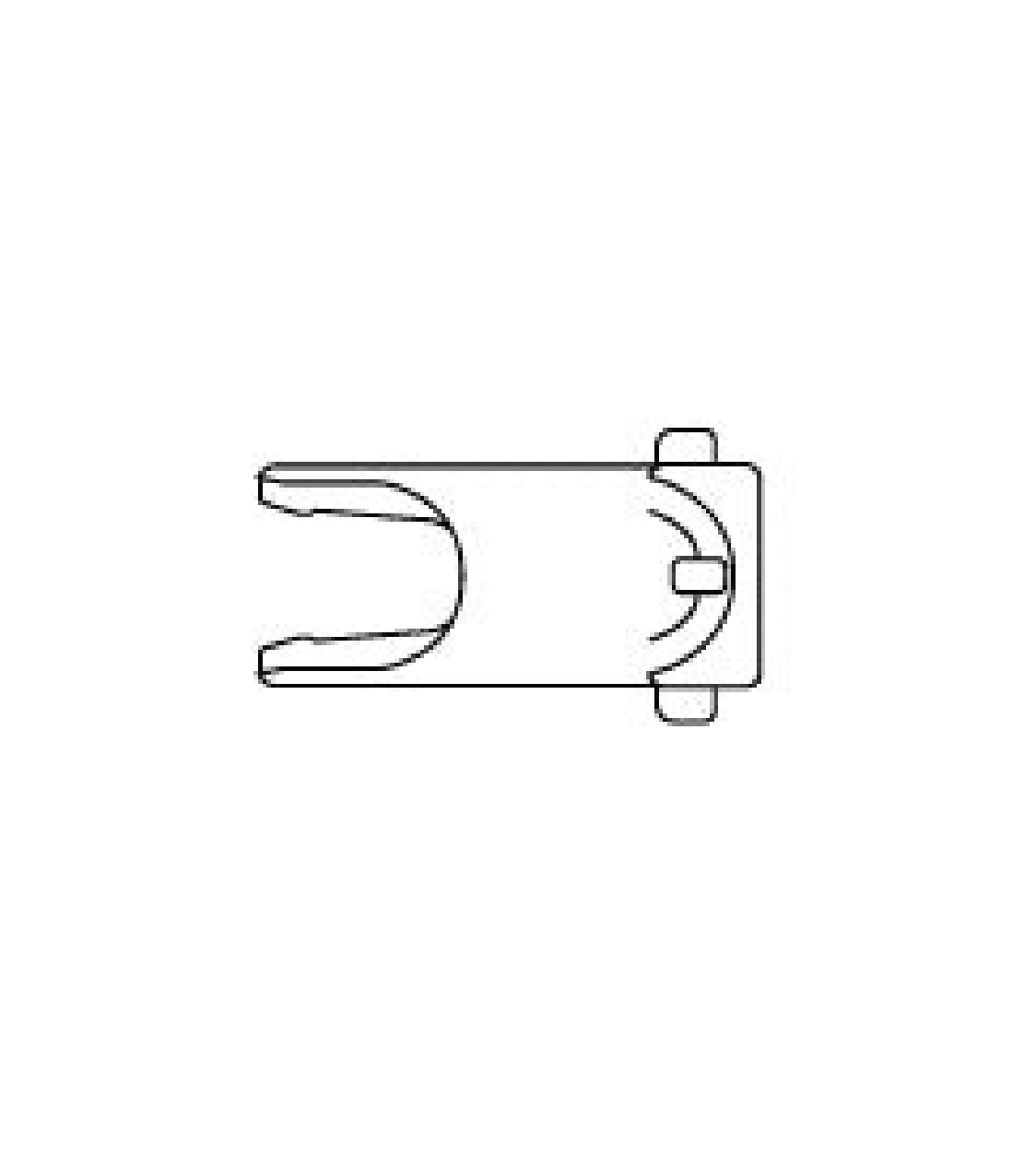

Cable Clip

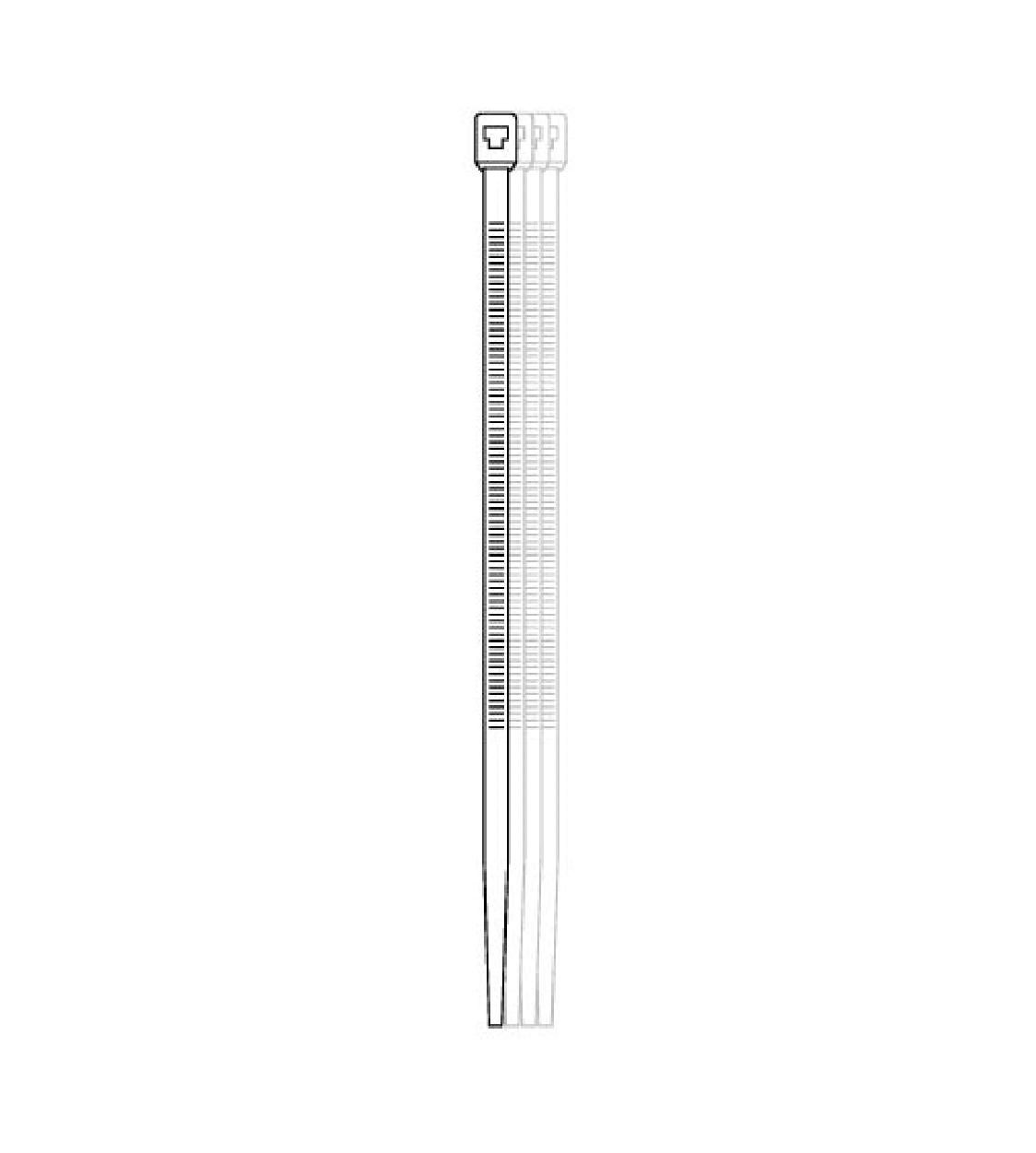

Cable Tie x10
| Model NO. | AFB1000 |
| Contents | Multi-task Dongle ACB1000 32ft (10m) Ruggedized USB-C Cable Mounting Adapter Cable Clip 10 Cable Ties |
| Dongle Interface | Output: USB-C (to camera) Input: USB-C (for USB-C cable) micro USB (for ATH2000 power supplier) |
| USB-C Cable | USB-A Male to USB-C Male Weatherproofing Cap and Seal UV Coating 32ft (10m) Supports USB 2.0 high speed data transferring at up to 200mbps |
| Mounting Adapter | Design for TLC2000 series to be installed into Construction Power Housing (ATH2000) |
| Requirements | BCC2000 (or TLC2000 with ATH2000) |
| Size (WxHxD) | Multi-task dongle ACB1000: 1.85 x 1.09 x 0.35 in (47.1 x 27.9 x 9 mm) USB-C cable: 32ft (10m) Mounting Adapter: 4.9 x 2.7 x 0.6 in (126 x 69 x 14.7 mm) |
| Weight | Multi-task dongle ACB1000: 0.33 oz (9.3g) USB-C cable: 15.2 oz (450g) Camera mounting adapter: 1.14 oz (32.5 g) |
Related products

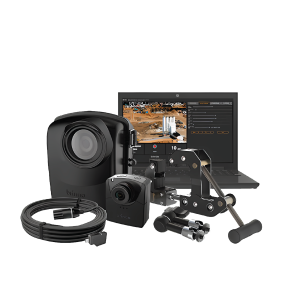

BCC2000 – Brinno Industrial Time Lapse Camera Bundle
Brinno BCC2000 time lapse camera is designed for long-term construction monitoring and progress documentation. With advanced HDR, day/night modes, and fully customizable capture intervals, it delivers high-resolution footage in all lighting conditions. Ideal for large-scale projects, it features automatic video stitching and minimal user input, making it perfect for real-time tracking and professional-grade construction time lapse. Built tough for outdoor use, the BCC2000 sets the standard for reliable, long-duration visual documentation.

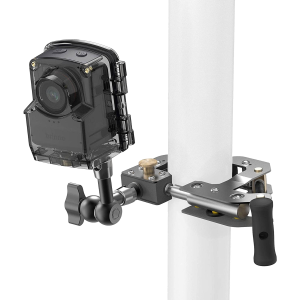

Brinno TLC2020-C – Long-Term Outdoor Time Lapse Camera
Brinno TLC2020-M – Short-Term Outdoor & Indoor Time Lapse Camera
TLC2020-Brinno Empower Time lapse camera
Brinno TLC2020 time lapse camera is a compact, high-performance tool designed for long-term construction and outdoor projects. With HDR and Full HD recording, it captures sharp, detailed footage in all lighting conditions. It features a built-in LCD screen for easy setup and programmable time lapse scheduling for flexible recording. Running on long-lasting AA batteries, the TLC2020 offers weeks of continuous operation without external power or Wi-Fi. CS-mount lens compatibility allows for interchangeable lenses, and the camera works seamlessly with Brinno waterproof housings, making it ideal for UAE’s challenging environments. Lightweight, portable, and built for professionals, the TLC2020 delivers reliable documentation for construction, engineering, and creative applications.

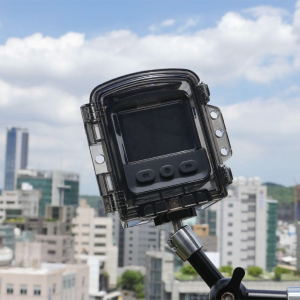

ATH1000 – Brinno Waterproof Housing
